Server

Server for Magica Duel
Team Project of Ajou Univ. Media Software Engineering Lecture

RESTful API Document

• API Docs

Server Architecture

Database Architecture

User Table

Column	Type	Not Null	Auto Increment	Key	Default Value
id	bigint	O	O	Primary Key
email	varchar
nickname	varchar
password	varchar
battle_info_id	bigint			Foreign Key
created_date	datetime
modified_date	datetime

Battle Info Table

Column	Type	Not Null	Auto Increment	Key	Default Value
id	bigint	O	O	Primary Key
score	int				0
win	int				0
lose	int				0
draw	int				0
created_date	datetime
modified_date	datetime

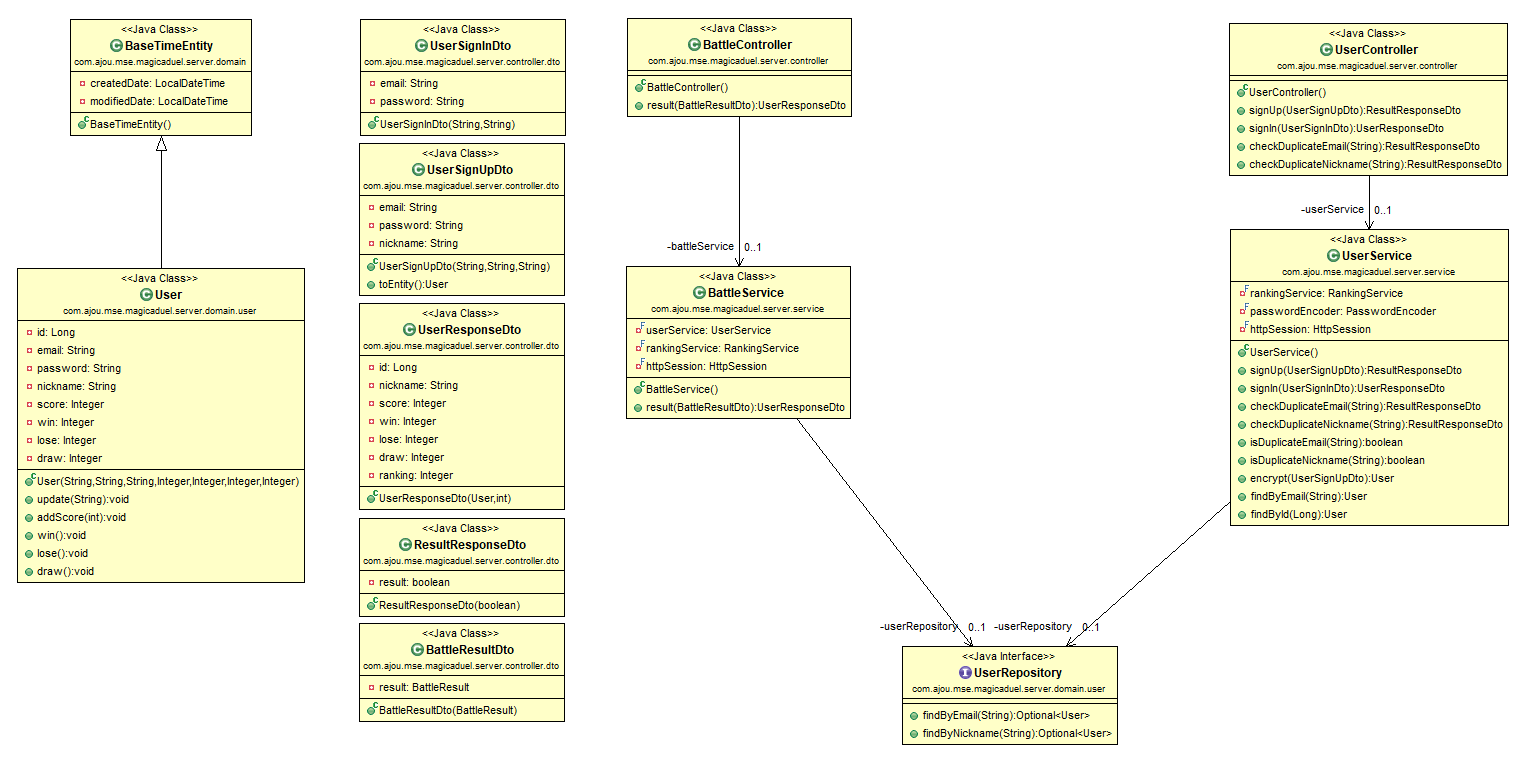

Class Diagram

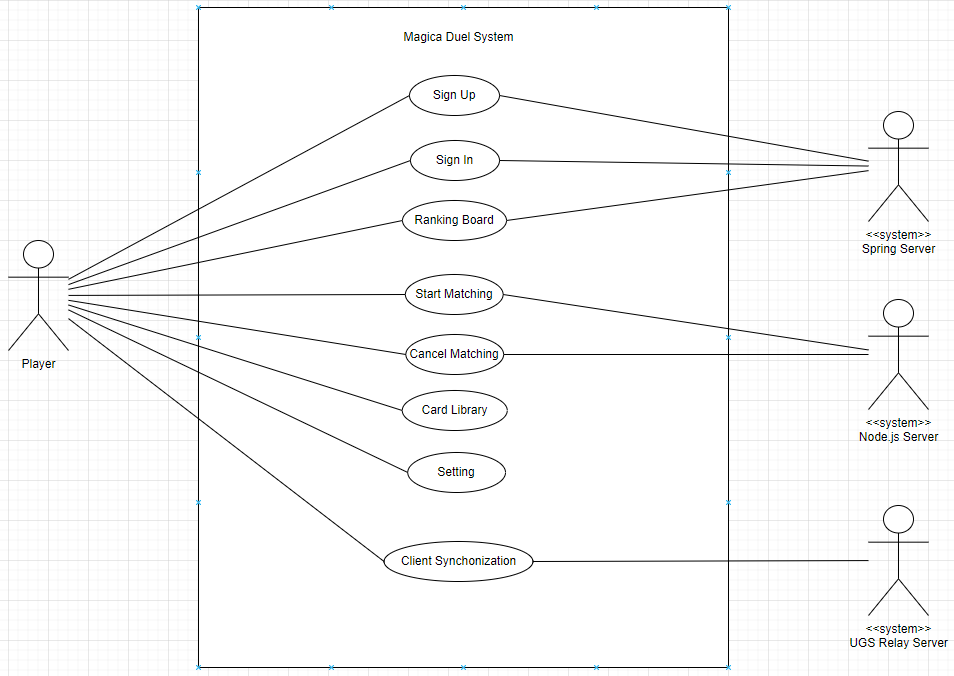

Use-case Diagram

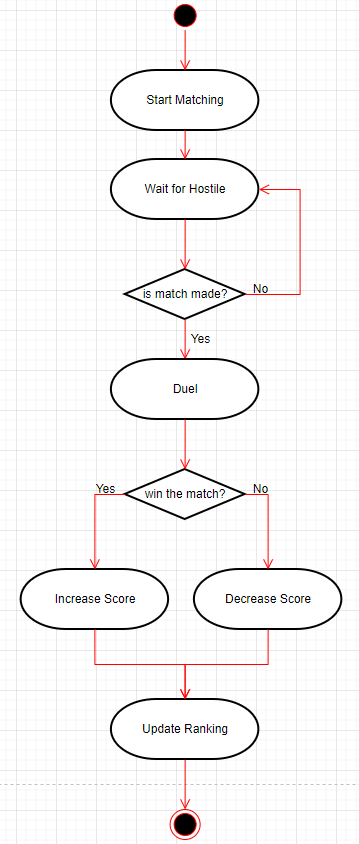

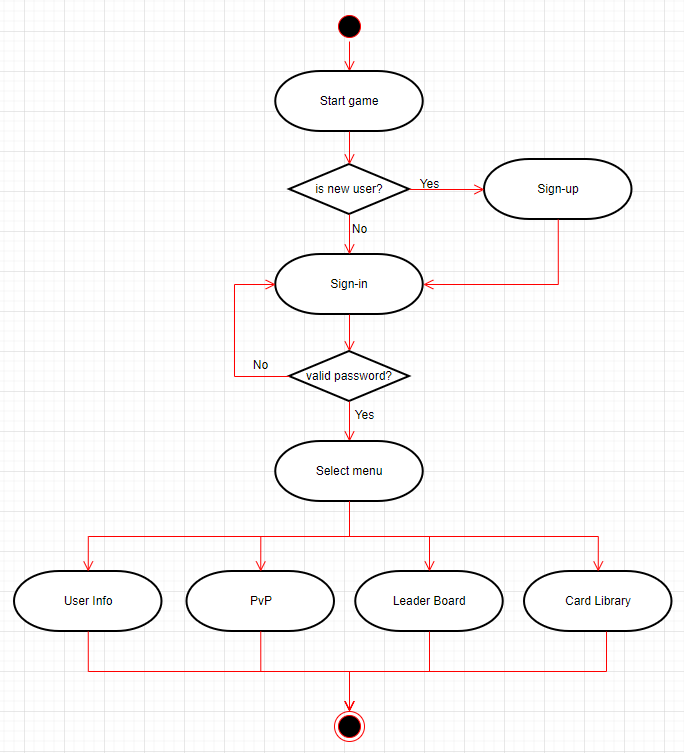

Activity Diagrams

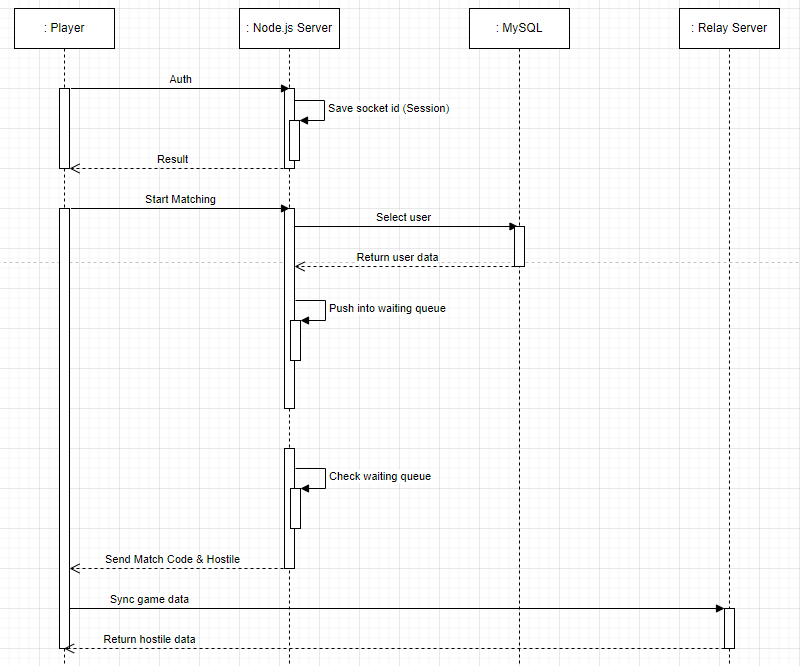

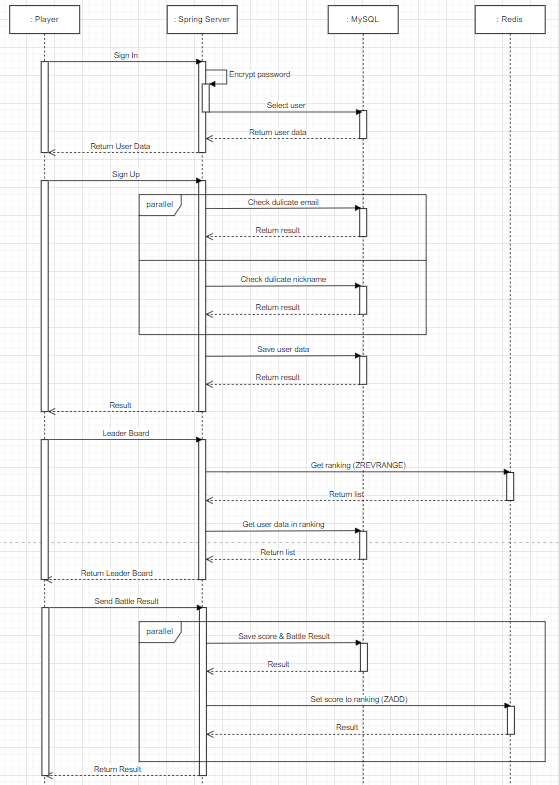

Sequence Diagrams
