Connections Between Components

<\p>

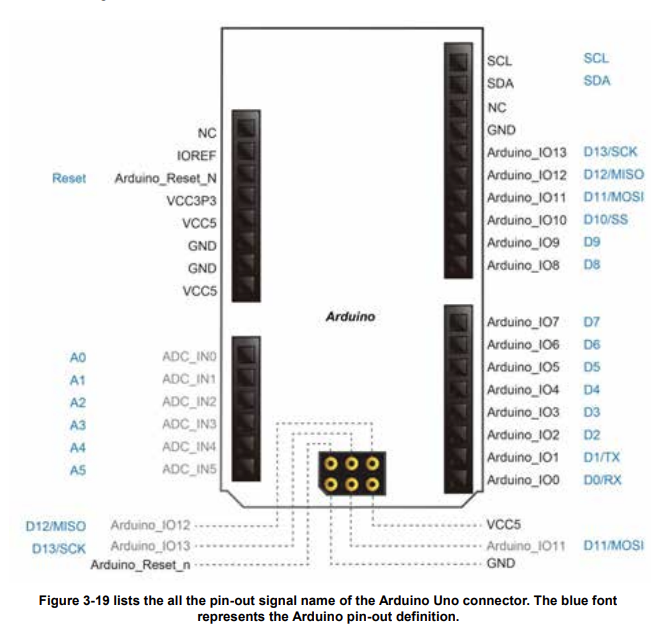

Diagram left shows how the FPGA maps to Arduino pins, the important ones are the ones with blue labels. Diagram right provided by Ed Stott shows how the ESP32 maps to the Arduino adaptor board which connects directly to the FPGA
