EDF File Editor

Minimal desktop viewer/editor for Madness-engine EDF/EDFBIN engine files. Quickly inspect, plot, and lightly edit torque curves and common engine parameters using JDougNY’s Project CARS Engine translation mapping (v1.01).

Why: Open an EDF, see what’s inside, export a curve to CSV, tweak values (or scale the whole torque table), and save a copy — no hex editor required.

---

Features

• Open *.edf, *.edfx, *.bin
• Parse & display
  • Torque tables (RPM, compression, torque) with plausibility checks
  • Turbo boost tables (RPM vs throttle 0/25/50/75/100%)
  • Common parameters (e.g., EngineInertia, RevLimit*, EngineFuelMap*, EngineBrakingMap*, cooling, lifetime stats, emissions)
  • Engine layout hint (best‑effort from known code sequences)
  • Unknown regions with hex preview & simple pattern analysis
• Plotting (optional, via matplotlib)

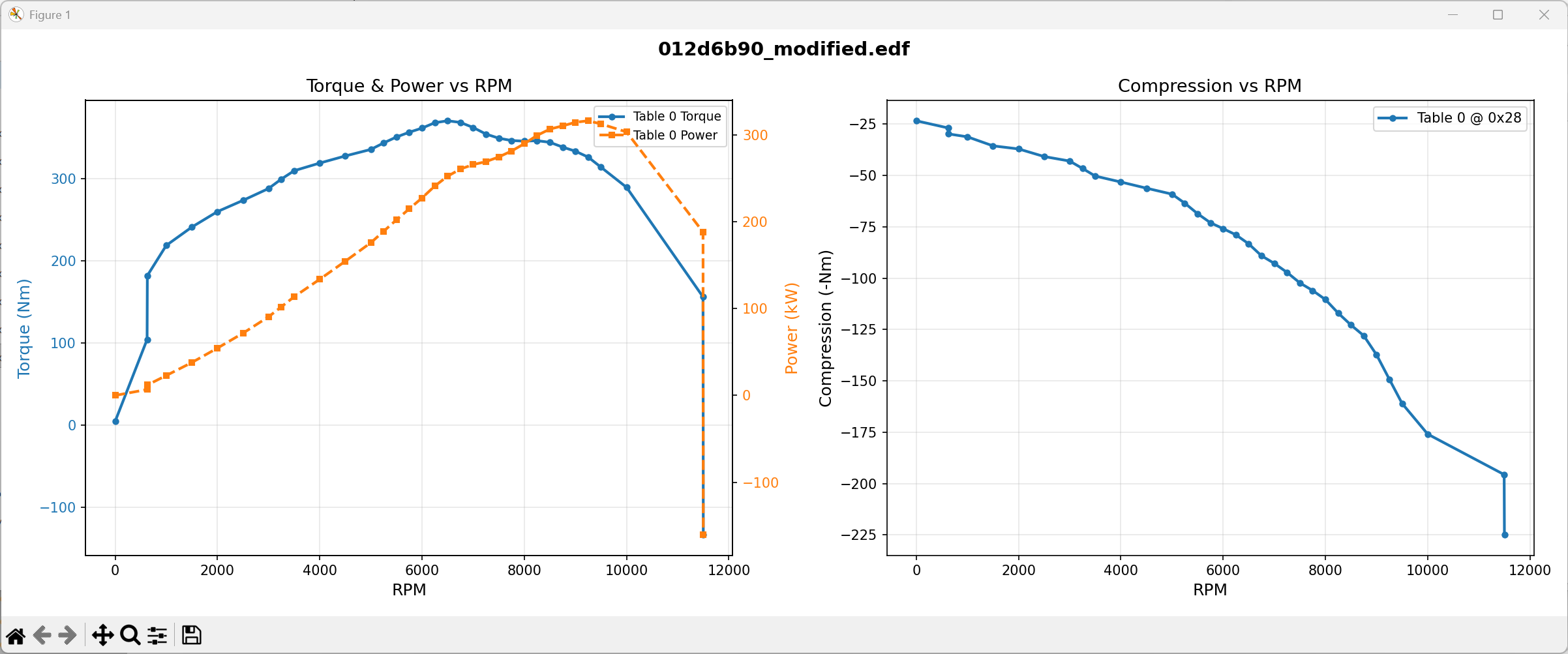

  • Torque vs RPM
  • Torque vs Compression
  • Both side‑by‑side
• Editing
  • Double‑click parameters (float/int/byte) to edit safely
  • Scale torque globally by a percentage (e.g., 110 for +10%, 90 for −10%)
• Export/Save
  • Export torque tables to CSV
  • Save a modified EDF to a new file; original remains untouched

Requirements

• Python 3.9+
• Standard library: tkinter, struct, csv, pathlib
• Optional for plots: matplotlib
  • Install: pip install matplotlib

---

Quick Start

python edf_tk_viewer.py

1. File → Open EDF…
2. Explore torque/boost tables, parameters, and unknown regions in the tree.
3. (Optional) Plot torque curves (requires matplotlib).
4. Edit a parameter: double‑click → change → Save in the dialog.
5. Tools → Scale Torque Values… to apply a global percentage.
6. File → Export torque CSV…
7. File → Save Modified EDF… to write a new file.

Changes are applied to an in‑memory copy until you save.

---

What the parser understands

Torque tables

• Detects 0‑RPM rows and subsequent rows (int32/float/float or float/float/float)
• Plausibility checks:
  • RPM: 0–25,000
  • Torque: −4,000–10,000 Nm
  • “Compression” (middle float) displayed/preserved as-is
• Shows hex offsets for traceability

Boost tables

• Throttle columns: 0/25/50/75/100% per RPM
• Typical values expected around 0.5–3.0 bar

Common parameters

• Known signatures → names (from JDougNY mapping), decoded as float/int/byte
• Examples: EngineInertia, RevLimitSetting/Range/Logic, EngineFuelMap*, EngineBrakingMap*, cooling & lifetime stats, emissions

Engine layout detection

• Best‑effort match from known sequences near file tail (e.g., Straight‑4/6, V10/V12)
• May report Unknown/Not found for some files

Unknown data explorer

• Computes known byte ranges and lists the gaps
• Hex preview & simple pattern hints (repeats, likely struct size, null blocks, ASCII)

---

Menus

File

• Open EDF…
• Export torque CSV…
• Save Modified EDF…
• Plot Torque vs RPM / vs Compression / Plot Both (needs matplotlib)
• Exit

Tools

• Scale Torque Values… — apply a global percentage to all parsed torque rows (including 0‑RPM rows)

Tree interactions

• Double‑click any Parameter row to edit typed values (float/int/byte)
• Offsets displayed as hex for correlation with external tools

---

CSV Export (Torque)

Columns:

table_index	row_index	rpm	compression	torque	row_kind	payload_offset_hex	table_start_hex	source_file

Use for comparisons, diffs, and external plotting.

---

Notes & Constraints

• Sanity checks are conservative to avoid false positives
• Some parameters/regions are game‑specific and may remain unknown
• Engine layout detection is heuristic, not guaranteed

---

Troubleshooting

• No plots → pip install matplotlib
• “No torque tables parsed” → file variant may differ, or checks filtered rows; inspect Unknown regions
• Edits didn’t save → use File → Save Modified EDF… to write a new file

---

Roadmap Ideas

• Per‑table/selection scaling
• Side‑by‑side file comparison & delta plots
• Editable boost tables
• Signature discovery helpers
• Dark mode/UI theming

---

Acknowledgements

• JDougNY — Project CARS Engine translation mapping (v1.01)

---

Dev Notes

• Single‑file Tk app (tkinter, struct)
• Key internals:
  • Signatures (SIG_*) mark row/table boundaries
  • Structs (ROW*, BOOST*) define layouts for struct.unpack_from/pack_into
  • Parsers: parse_torque_tables, parse_boost_tables, parse_params
  • In‑place editing via bytearray with correct endianness
  • Unknown regions = file length minus merged known ranges
