ConsoleChip8

A single-file, zero-dependency CHIP-8 emulator for Windows Console with built-in debugger

 ██████╗ ██████╗ ███╗   ██╗███████╗ ██████╗ ██╗     ███████╗ ██████╗██╗  ██╗██╗██████╗  █████╗
██╔════╝██╔═══██╗████╗  ██║██╔════╝██╔═══██╗██║     ██╔════╝██╔════╝██║  ██║██║██╔══██╗██╔══██╗
██║     ██║   ██║██╔██╗ ██║███████╗██║   ██║██║     █████╗  ██║     ███████║██║██████╔╝╚█████╔╝
██║     ██║   ██║██║╚██╗██║╚════██║██║   ██║██║     ██╔══╝  ██║     ██╔══██║██║██╔═══╝ ██╔══██╗
╚██████╗╚██████╔╝██║ ╚████║███████║╚██████╔╝███████╗███████╗╚██████╗██║  ██║██║██║     ╚█████╔╝
 ╚═════╝ ╚═════╝ ╚═╝  ╚═══╝╚══════╝ ╚═════╝ ╚══════╝╚══════╝ ╚═════╝╚═╝  ╚═╝╚═╝╚═╝      ╚════╝

Overview

ConsoleChip8 is a lightweight, pure C++ CHIP-8 emulator that runs natively in the Windows Console. It requires no external libraries, no runtimes, and no complicated setup—just download and run.

Designed for both retro gaming and emulator development learning, it includes a full-featured built-in debugger for studying CHIP-8 opcodes and system behavior.

---

Features

🎮 Core Emulation

• Full implementation of the original CHIP-8 instruction set
• Single-file, <1MB executable, zero dependencies
• Native Windows console rendering with almost no flickering
• Configurable emulation speed & frame timing
• Buzzer sound support with toggle
• Save / load emulator state (dump files)
• Persistent configuration file
• Low CPU & RAM usage (≈1MB RAM required)
•

🔬 Built-in Debugger

• One-key debug mode entry (F5)
• Step-by-step instruction execution
• View full register state (V0–V15, I, PC, SP, stack, timers)

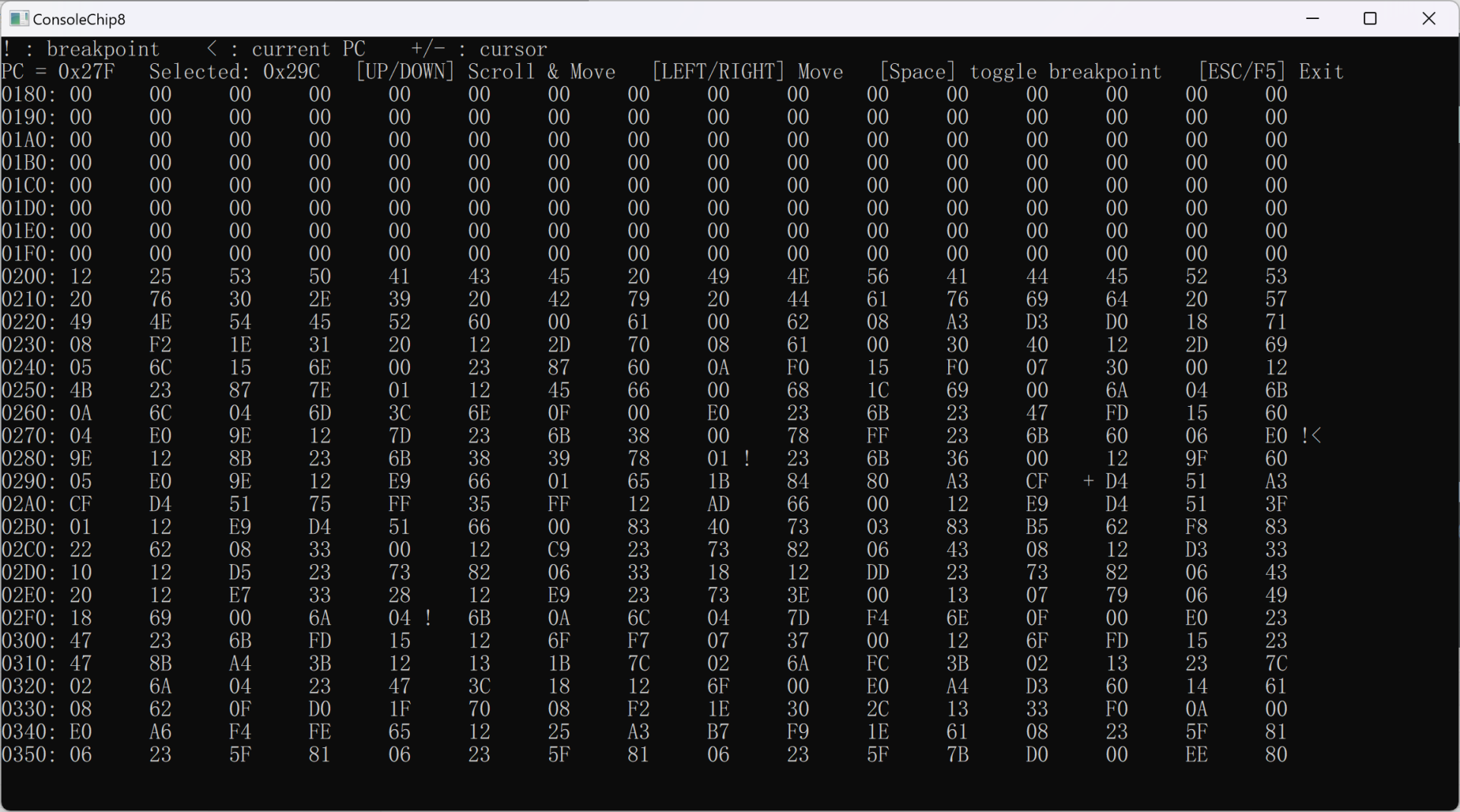

• Memory Viewer
• Breakpoint system (toggle at current PC)
• Auto-pause when breakpoint hit
• Real-time PC & opcode display
• Seamless switch between run/debug modes
•
•

🎯 Usability

• On-screen function-key menu
• Clear keyboard mapping
• Retro terminal-style UI

---

Quick Start

1. Download & Run

Go to Releases and download the prebuilt executable. Double-click ConsoleChip8.exe to launch.

2. Load a ROM

• Press F1 in the main menu
• Enter the path to your CHIP8 ROM file
• Emulation starts automatically

3. Debug Mode (For Learning)

While running, press F5 to enter debug mode and inspect CHIP-8 behavior step by step.

---

Keyboard Shortcuts

Menu Mode

• F1 – Load ROM
• F2 – Load state dump
• F3 – About & keymap
• F4 – Exit

Run / Pause Mode

• F1 – Pause / Resume
• F2 – Save state dump
• F3 – About & keymap
• F4 – Return to menu
• F5 – Enter debug mode

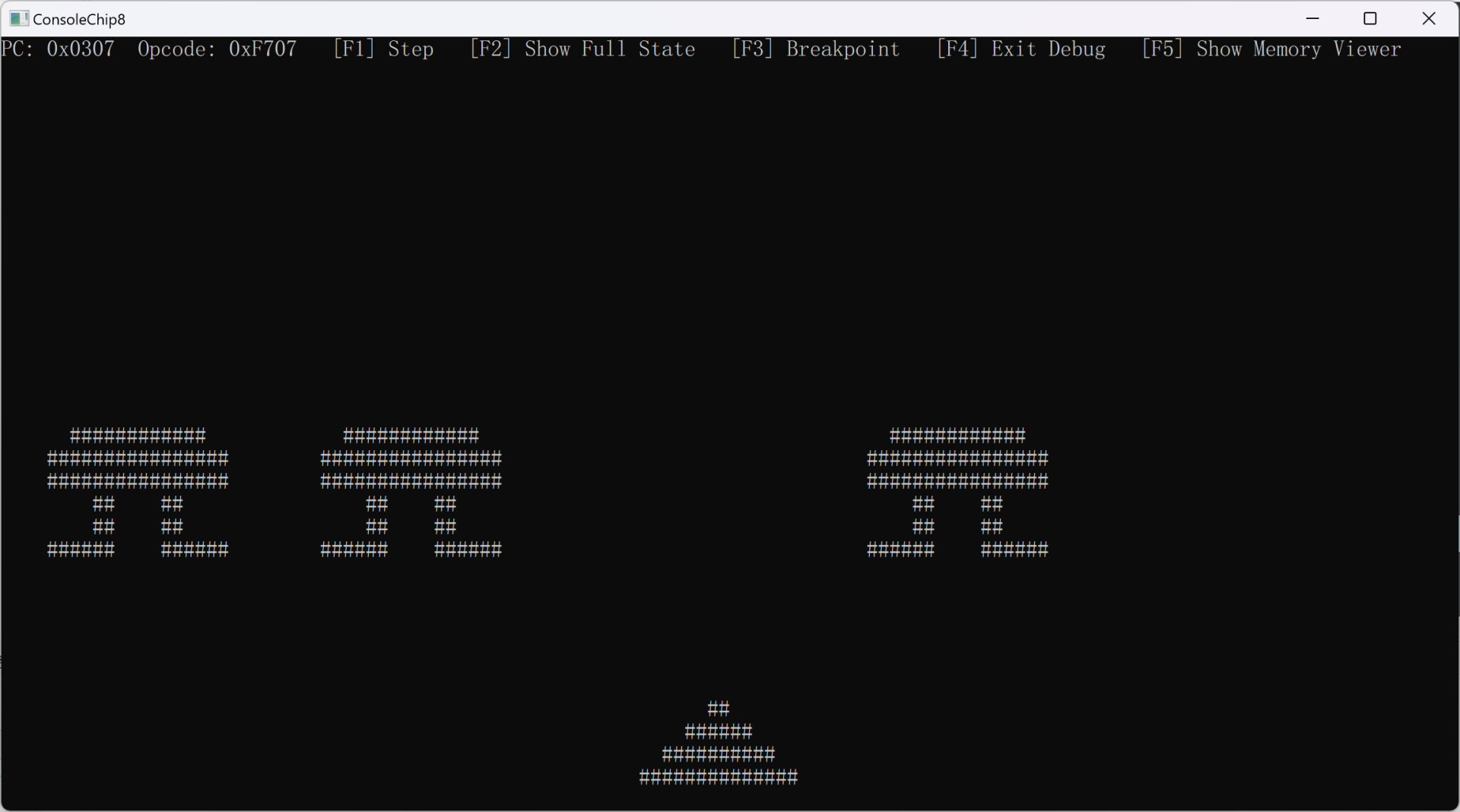

Debug Mode

• F1 – Step one instruction
• F2 – Show full emulator state
• F3 – Toggle breakpoint at current PC
• F4 – Exit debug mode
• F5 – Show Memory Viewer

---

Keypad Mapping (CHIP‑8 → PC)

CHIP-8	PC Key	CHIP-8	PC Key
0	X	8	S
1	1	9	D
2	2	A	Z
3	3	B	C
4	Q	C	4
5	W	D	R
6	E	E	F
7	A	F	V

---

Build from Source

Requires: Windows + C++11 compiler (MinGW‑w64 or MSVC)

MinGW

g++ ConsoleChip8.cpp -o ConsoleChip8.exe

MSVC

cl ConsoleChip8.cpp /Fe:ConsoleChip8.exe

---

Configuration

A chip8.cfg file is auto-generated on first run. You can customize:

• ops_per_frame – Instructions executed per frame
• frame_ms – Frame duration (controls speed)
• pixel_char – Character used for pixels
• sound_enabled – Toggle buzzer sound

---

License

MIT License. Free for personal, educational, and commercial use.

---

Support

If this project helps you learn CHIP-8 or emulator development, please star ⭐ the repository to support it!

---
