Flow diagram throws `Cannot read properties of undefined (reading 'from')` after an edge is removed

[xHayden]

Removing the last edge from a flow_diagram block makes the block fail to render with Cannot read properties of undefined (reading 'from').

Repro (Whiteboard Desktop 0.1.1, via MCP)

1. session_edit insert:

   {"type":"flow_diagram","title":"Repro flow",
    "nodes":[{"key":"a","label":"A"},{"key":"b","label":"B"},{"key":"c","label":"C"}],
    "edges":[{"from":"a","to":"b"},{"from":"b","to":"c"},{"from":"a","to":"c"}]}

2. After the diagram renders, session_edit {"type":"remove","targetId":"<id of the a→c edge>"}.

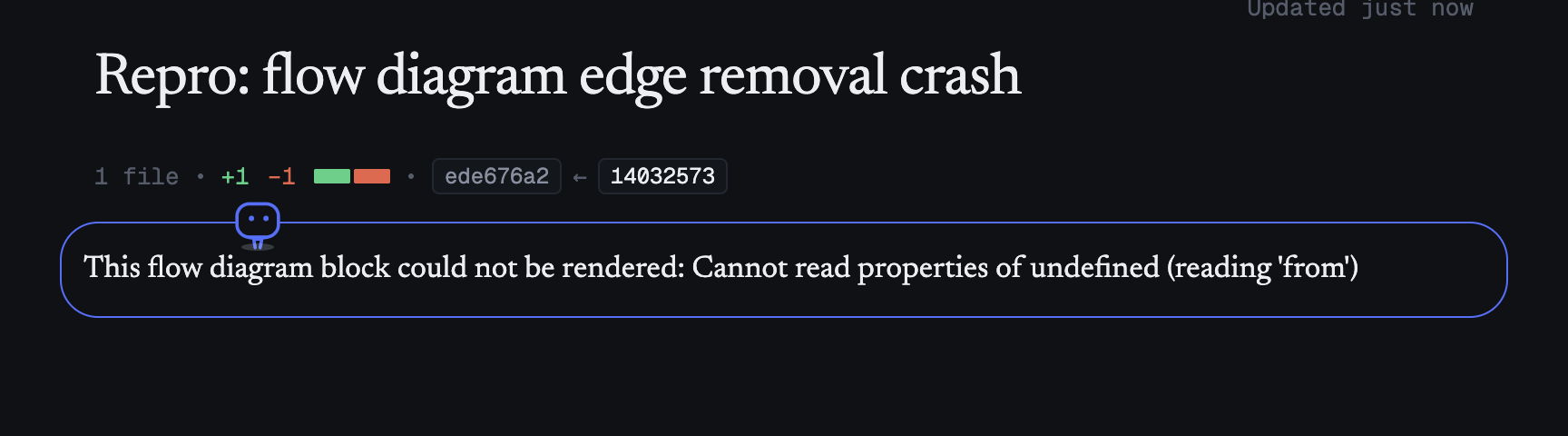

3. The block renders "This flow diagram block could not be rendered: Cannot read properties of undefined (reading 'from')".

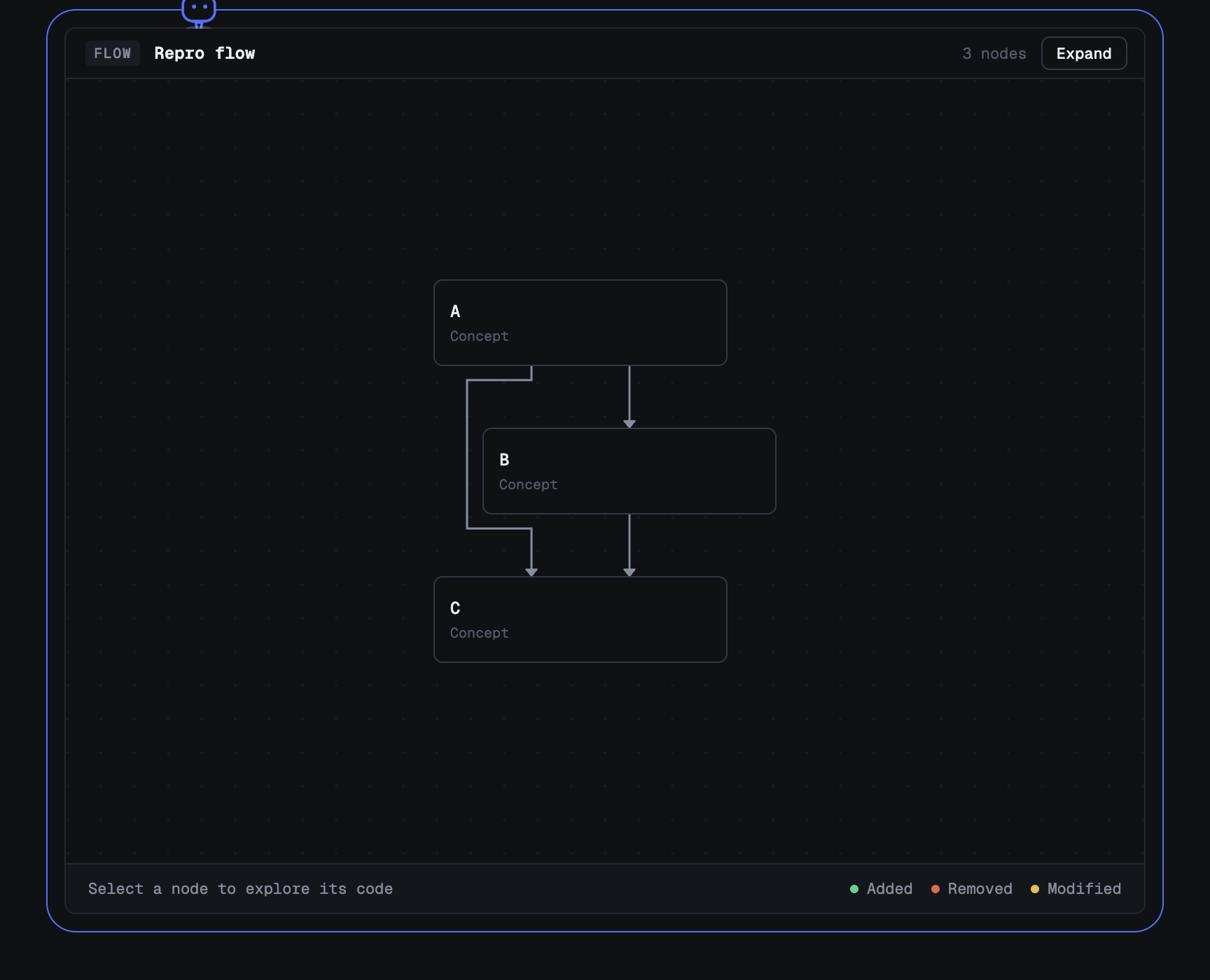

Before (3 edges) → after removing a→c:

Cause

FlowGraph keeps the previous layout in state while layoutFlow runs for the new block (flow-graph.tsx#L60-L74). On the render right after the edit, the edges memo pairs the new block with the old layout and indexes by the old edge positions (flow-graph.tsx#L107-L124):

source: block.edges[edge.index]!.from,

edge.index comes from the ELK id assigned against the old edge array (flow-graph.tsx#L267-L270, #L304), so index 2 is out of bounds once the block has two edges. The ! hides this from the type checker. (From reading the code, removing a middle edge wouldn't throw, but that one frame would pair edges with the wrong endpoints/labels. I haven't verified this.)

Possible fix

Keep the block a layout was computed for next to the layout, and treat a mismatch as "not laid out yet", e.g. setLayout({ block, result }), then const current = layout?.block === block ? layout.result : undefined.

[xHayden]

keeping it failed is probably fine, as long as #609 is fixed. maybe a more verbose error would help, though.
