🎙️ LiveTranslate: Real-Time Speech Translation Overlay

🌐 Official Website: livetranslate-ai.netlify.app

LiveTranslate is a low-latency, real-time speech translation subtitle overlay for Windows. It captures audio from your microphone or system speakers, transcribes it using state-of-the-art AI, and provides instant translation in a sleek, semi-transparent floating window.

---

📺 Demo & Website

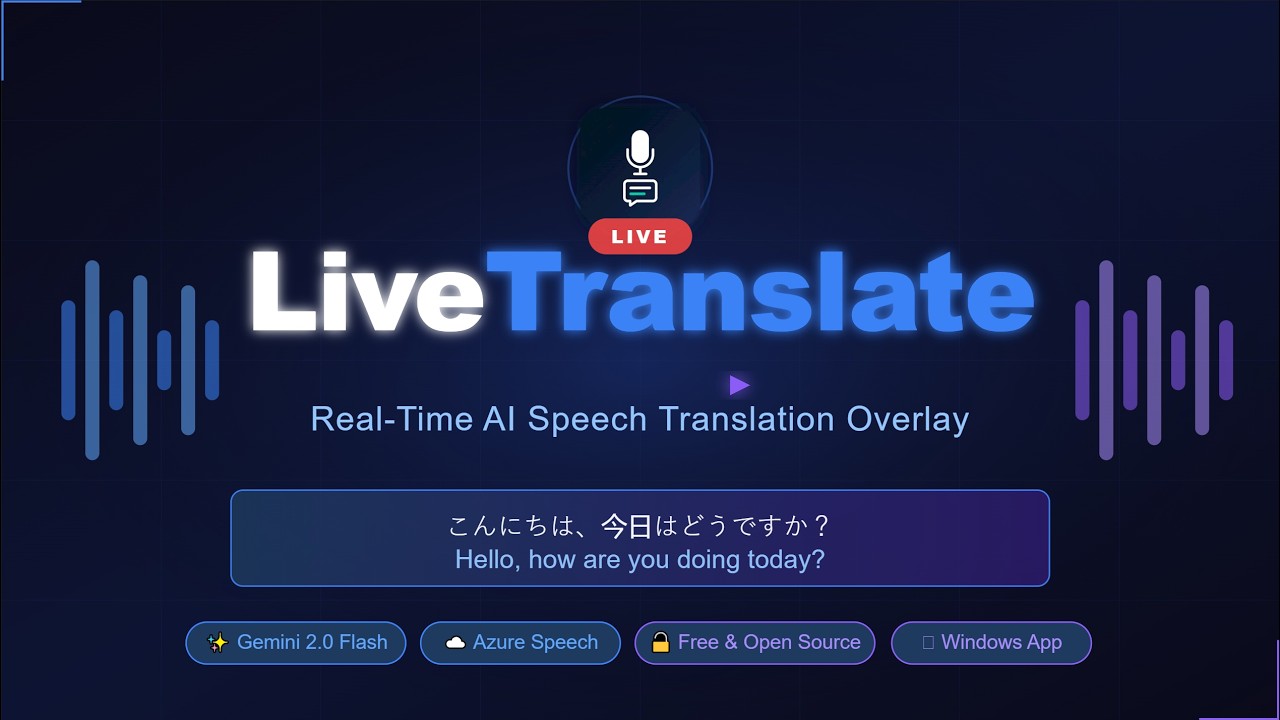

🎬 Watch the Demo Video

▶️ Watch the Full Demo on YouTube

The Official Website

---

✨ Key Features

• 🚀 Near-Instant Translation: Leverages Google Gemini 2.5 Flash or Azure Speech Services for real-time performance.
• 🎙️ Dual Audio Source:
  • Microphone mode (default): Captures your voice via any input device.
  • System Audio mode: Captures all desktop/speaker output via WASAPI loopback — perfect for translating videos, calls, or games without a headset.
• 🖥️ Non-Intrusive UI:
  • Semi-transparent overlay stays on top of meetings, videos, or games.
  • Fully draggable and resizable (via settings).
  • Interactive toggle: Double-click to instantly hide/show text.
  • Status badge in the subtitle bar shows the active audio source (🎙 or 🔊).
• ⌨️ Global Hotkey: Ctrl+Shift+L to toggle listening from any application.
• 📥 Tray-Based: Operates entirely from the system tray for a clean, taskbar-free workspace.
• 🎨 Customizable: Change font size, colors, window opacity, and quality mode to match your preference.

---

🛠️ How It Works

LiveTranslate uses a modular pipeline to ensure the lowest possible latency between speech and subtitle display.

graph LR
    A1[🎙 Microphone] -->|mic mode| B
    A2[🔊 System Speakers] -->|system mode - WASAPI loopback| B
    B[🔉 AudioCapture\n16kHz PCM queue] --> C{STT Engine}
    C -->|Gemini Live| D[✨ Gemini 2.5 Flash\nNative Audio - STT + Trans]
    C -->|Azure Speech| E[🎙️ Azure STT\nContinuous Recognition]
    E --> F[🌐 Azure Translator\nor Gemini Translate]
    D --> G[🖥️ Subtitle Overlay]
    F --> G
    G --> H[🎞️ Floating Window\nstay-on-top]

Loading

The Pipeline:

1. Capture (audio_capture.py): PyAudioWPatch captures raw 16kHz PCM in 100ms chunks using one of two modes:
   • mic (default): Reads from a selected microphone input device.
   • system: Opens a WASAPI loopback on the default output device, then downmixes to mono and resamples to 16kHz — capturing everything playing through your speakers.
   • A drop-oldest bounded queue (AUDIO_QUEUE_MAX_CHUNKS = 50) prevents memory growth under load.
2. STT & Translation:
   • Google Gemini (gemini_client.py): Streams audio chunks over WebSocket to the Gemini 2.5 Flash Native Audio Live API for simultaneous real-time transcription and translation (lowest latency, ~200ms).
   • Azure (azure_speech_client.py + azure_translator.py): Feeds audio to Azure Cognitive Services for continuous speech-to-text, then calls Azure Translator (or Gemini Translate) for high-fidelity neural translation.
3. Display (subtitle_window.py): A custom PyQt5 frameless window renders translated text with semi-transparency and "stay-on-top" priority. The status badge (🎙 / 🔊) reflects the active audio source.

---

📥 Download & Quick Start

We provide two ways to run the application for Windows:

Option 1: Fast Installer (Recommended 🚀)

1. Download the Installer: Go to the GitHub Releases page and download LiveTranslate_Setup.exe.
2. Install: Double-click the Setup file. It installs the backend dependencies and creates a fast-launching Desktop shortcut.
3. Launch: Open LiveTranslate from your Desktop or Start Menu.

Option 2: Portable Executable (Standalone)

1. Download the Executable: Download LiveTranslate.exe from the Releases page.
2. Place the file anywhere you like (Desktop, C:\Tools\, etc.).
3. Launch: Double-click it. (Note: The standalone executable takes ~10-15 seconds to open as it must decompress itself in the background).

Quick Start

4. Configure (Optional): Right-click the LT icon in the system tray → Settings to enter your own API keys.
5. Start: Right-click the tray icon → Start Listening.

Warning

Windows SmartScreen Warning — this is expected and safe to bypass.

Because LiveTranslate.exe is an unsigned open-source executable, Windows will show a blue "Windows protected your PC" dialog the first time you run it. Here's how to proceed:

1. Click "More info" (small link below the warning text)
2. Click "Run anyway"

This warning appears for all community-built executables that have not been commercially signed. You can review the full source code in this repository.

Note

No API Keys Required: The application now comes embedded with default public API keys so you can test it immediately!

However, for long-term use, you should add your own private keys in the Settings menu. You can enter at least one of:

• Azure Speech key — for Azure engine (requires Azure account)
• Gemini API key — for Gemini engine (free tier available)

Settings are saved locally in config.json next to the .exe (or in %APPDATA%\LiveTranslate\ if the exe is in a restricted folder).

---

⚙️ Settings & Personalization

LiveTranslate is designed for personal use, meaning you use your own AI provider keys. This ensures your data remains under your control and you only pay for what you use (often within free tiers!).

🔑 Personal API Keys

Right-click the tray icon → Settings to configure. The Settings window has three tabs:

STT Tab

• Azure Speech key / region — required when using the Azure STT engine.
• Audio Source: Choose between:
  • 🎙 Microphone — captures your voice (default).
  • 🔊 System Audio — captures all desktop audio via WASAPI loopback (requires PyAudioWPatch).
• Microphone device — pick a specific input device or leave on System Default.
• Connection Test button to verify your Azure Speech credentials.

Translation Tab

• STT Engine: Azure Speech or Gemini Live.
• Translation Engine: Azure Translator or Gemini.
• Google Gemini API key — get a free key at Google AI Studio. Uses Gemini 2.5 Flash Native Audio for live STT and Gemini 2.5 Flash for translation.
• Azure Translator key / region — get keys at the Azure Portal.

Display Tab

• Opacity, font sizes, auto-clear delay, max history lines.
• Quality Mode (see table below).
• Debug Mode toggle.

Note

Your keys are stored locally in config.json. They are never uploaded or shared.

🌐 Language Presets

LiveTranslate supports several bi-directional language presets out of the box:

• EN ↔ VI: English and Vietnamese (Default)
• EN ↔ JA: English and Japanese
• EN ↔ ZH: English and Chinese (Simplified)
• EN ↔ KO: English and Korean
• EN ↔ ES: English and Spanish
• EN ↔ FR: English and French
• EN ↔ DE: English and German
• EN ↔ RU: English and Russian
• EN ↔ PT: English and Portuguese
• EN ↔ IT: English and Italian

⚙ Quality Modes

LiveTranslate supports three quality presets that control translation responsiveness vs. accuracy:

Mode	When to use	Interim debounce	Accuracy bias
fast	Live conversation, gaming	200ms	Low
balanced	General use (default)	500ms	Medium
accurate	Lectures, slow speech, high stakes	800ms	High

To change the quality mode: right-click tray icon → Settings → Display tab → Quality Mode dropdown.

Note

Quality mode changes take effect on the next Start Listening session.

You can switch between these presets instantly via the Settings window.

---

🏗️ Project Structure

src/
├── audio_capture.py      # Dual-mode audio: mic (PyAudio) + system (WASAPI loopback)
├── app_state.py          # AppState enum: IDLE / STARTING / LISTENING / RECONNECTING / ERROR
├── azure_speech_client.py# Azure Cognitive Services continuous Speech-to-Text
├── azure_translator.py   # Azure Translator neural translation
├── config.py             # All runtime settings, quality presets, language pairs
├── gemini_client.py      # Gemini Live API WebSocket client (native audio STT + translate)
├── gemini_translator.py  # Gemini text-only translation fallback
├── json_config.py        # Persistent config read/write (config.json / %APPDATA%)
├── logger.py             # Structured logging setup
├── metrics.py            # PipelineMetrics latency tracking
├── settings_window.py    # Dark-themed tabbed QDialog (STT / Translation / Display)
├── subtitle_window.py    # Frameless transparent stay-on-top subtitle overlay
├── translator.py         # Lang-pair detection helpers
└── tray.py               # System tray icon, menu, and engine switching logic

---

🧪 Technology Stack

• Frontend: PyQt5 for the high-performance transparent overlay and system tray management.
• Audio: PyAudioWPatch — a Windows-specific fork of PyAudio that adds WASAPI loopback support for capturing system audio. Falls back to standard PyAudio for mic-only mode if WPatch is unavailable.
• AI Engines:
  • google-genai: WebSocket-based interaction with the Gemini 2.5 Flash Native Audio Live API for real-time STT and the Gemini 2.5 Flash model for text translation.
  • azure-cognitiveservices-speech: Official SDK for Azure Continuous Speech-to-Text.
  • Azure Translator REST API for neural translation.
• Utilities: pystray (tray icon), keyboard (global hotkeys), python-dotenv (config), Pillow (tray icon rendering).

---

🛡️ Security & Privacy

• Local Processing: Audio is streamed directly from your device to the AI provider. No data is stored on our servers.
• Secret Management: Your API keys are stored locally in config.json and are never shared or uploaded.
• Open Source: Audit the code yourself to see exactly how your data is handled.

---

📐 Promotion & Branding

Check out the plan/ folder for high-resolution logos, marketing copy, and screenshots to help spread the word!

---

🤝 Contributing

Contributions are what make the open source community such an amazing place to learn, inspire, and create. Please see CONTRIBUTING.md for details.

---

📄 License

Distributed under the MIT License. See LICENSE for more information.

---

👨‍💼 Author

NGÔ TRUNG KIÊN 🌐 kngo.netlify.app

---
