Add Microsoft.Testing.Extensions.HtmlReport extension#8283
Open
Evangelink wants to merge 5 commits into
Open
Conversation
Closes #5754. New MTP extension `Microsoft.Testing.Extensions.HtmlReport` that produces a single, self-contained HTML test report at the end of a test session. CLI options (mirroring TrxReport conventions): --report-html enable the HTML report --report-html-filename override the file name (must end with `.html`, no path component) The report is published as a SessionFileArtifact so other extensions and dotnet test can pick it up. UX - Single file, no CDN: all CSS/JS/data are inlined. Easy to attach to PR comments, e-mail, archive as CI artifact. - Native CSS variables, automatic light/dark theme via `prefers-color-scheme`. - Summary cards, free text search, outcome filter pills (failed first by default), sortable columns. - Group by: None / Class / Duration / Trait <key> (one option per distinct trait key in the report). - Duration buckets: <10 ms, 10-100 ms, 100 ms-1 s, 1-10 s, 10-60 s, >=1 min. - Expandable per-row detail panel with error message, stack trace, standard output, standard error. - Pagination (200 rows / page) for large runs. - UI state (filter / sort / search / grouping) persisted in sessionStorage. Handling of duplicate UIDs Some test frameworks emit multiple terminal-state results that share the same `TestNode.Uid` (parameterized rows, in-process retries, broken UID generators). The consumer never deduplicates: every observation is preserved, and the engine annotates each row with `attemptIndex` / `attemptOf` so the UI can display a `#N of M` badge on the affected rows. Security The embedded JSON island is built with a hand-rolled HTML-safe JSON encoder that escapes `<`, `>`, `&`, `'`, `\u2028`, `\u2029` as `\uXXXX`, so test-controlled content (display names, stack traces, stdout / stderr) cannot break out of the `<script type= "application/json">` block. The renderer uses `textContent` only. A regression test verifies that hostile content such as `</script><img onerror=alert(1)>` never appears literally in the produced HTML. Performance - No reflection-based JSON serialization (works on netstandard2.0 without depending on System.Text.Json). - Per-test stdout / stderr (32 KiB) and stack traces (32 KiB) are truncated with a UI-visible suffix to keep huge runs usable. - Browser-side pagination at 200 rows / page by default. Future hook (live mode) The page exposes `window.mtpRender(newReport)`. A future OTel / Server-Sent Events extension can stream deltas and call this function to refresh the page in place without reloading. Repo wiring - TestFx.slnx: project registered under `/src/1 - Platform and Extensions/`. - Microsoft.Testing.Platform.csproj: `InternalsVisibleTo` added. - HelpInfoAllExtensionsTests / MSBuild.KnownExtensionRegistration: expectations updated for the new `--report-html` options and the new auto-registered builder hook. - 21 new unit tests covering CLI validation, JSON shape, traits, duplicate-UID handling, output truncation and HTML/JS injection. Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>
Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>
Contributor
There was a problem hiding this comment.
Pull request overview
Adds a new Microsoft.Testing.Platform HTML report extension that can be auto-registered through MSBuild, exposes --report-html CLI options, generates a self-contained HTML session artifact, and adds unit/acceptance coverage for the new package.
Changes:
- Introduces
Microsoft.Testing.Extensions.HtmlReportwith CLI registration, report generation, embedded HTML template, resources, packaging, and public API declarations. - Registers the extension in the solution, platform internals, MSBuild hook tests, and all-extension help/info acceptance expectations.
- Adds unit tests for filename validation, JSON/report generation, duplicate UIDs, traits, truncation, and injection escaping.
Show a summary per file
| File | Description |
|---|---|
| TestFx.slnx | Registers the new HtmlReport project. |
| test/UnitTests/Microsoft.Testing.Extensions.UnitTests/Microsoft.Testing.Extensions.UnitTests.csproj | Adds test project reference to HtmlReport. |
| test/UnitTests/Microsoft.Testing.Extensions.UnitTests/HtmlReportGeneratorCommandLineTests.cs | Adds CLI validation tests. |
| test/UnitTests/Microsoft.Testing.Extensions.UnitTests/HtmlReportEngineTests.cs | Adds report engine/unit generation tests. |
| test/IntegrationTests/Microsoft.Testing.Platform.Acceptance.IntegrationTests/MSBuild.KnownExtensionRegistration.cs | Adds MSBuild auto-registration assertions. |
| test/IntegrationTests/Microsoft.Testing.Platform.Acceptance.IntegrationTests/HelpInfoAllExtensionsTests.cs | Updates help/info expectations and asset package references. |
| src/Platform/Microsoft.Testing.Platform/Microsoft.Testing.Platform.csproj | Grants internals access to HtmlReport. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/TestingPlatformBuilderHook.cs | Adds MSBuild builder hook. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Templates/report-template.html | Adds embedded HTML/CSS/JS report UI. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/ExtensionResources.resx | Adds localizable extension strings. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.cs.xlf | Adds Czech localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.de.xlf | Adds German localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.es.xlf | Adds Spanish localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.fr.xlf | Adds French localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.it.xlf | Adds Italian localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.ja.xlf | Adds Japanese localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.ko.xlf | Adds Korean localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.pl.xlf | Adds Polish localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.pt-BR.xlf | Adds Portuguese Brazil localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.ru.xlf | Adds Russian localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.tr.xlf | Adds Turkish localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.zh-Hans.xlf | Adds Simplified Chinese localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Resources/xlf/ExtensionResources.zh-Hant.xlf | Adds Traditional Chinese localization stub. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/PublicAPI/PublicAPI.Unshipped.txt | Declares new public API surface. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/PublicAPI/PublicAPI.Shipped.txt | Initializes shipped API file. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/PACKAGE.md | Adds NuGet package documentation. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/Microsoft.Testing.Extensions.HtmlReport.csproj | Defines project/package layout and resources. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/HtmlReportGeneratorCommandLine.cs | Adds CLI option provider and validation. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/HtmlReportGenerator.cs | Adds data consumer/lifetime handler that emits the artifact. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/HtmlReportExtensions.cs | Adds builder extension registration method. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/HtmlReportEngine.cs | Generates HTML-safe JSON and writes the report file. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/buildTransitive/Microsoft.Testing.Extensions.HtmlReport.props | Adds transitive package import. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/buildMultiTargeting/Microsoft.Testing.Extensions.HtmlReport.props | Adds MSBuild self-registration metadata. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/build/Microsoft.Testing.Extensions.HtmlReport.props | Adds build package import. |
| src/Platform/Microsoft.Testing.Extensions.HtmlReport/BannedSymbols.txt | Adds analyzer banned-symbol rules. |
Copilot's findings
- Files reviewed: 35/40 changed files
- Comments generated: 12
Comment on lines
+513
to
+515
| // Default filter: if there's any failure, scope to "failed" first. | ||
| if (state.filter === "all" && (report.summary.failed || report.summary.errored || report.summary.timedOut)) { | ||
| state.filter = "failed"; |
Comment on lines
+96
to
+106
| foreach (char c in fileName) | ||
| { | ||
| if (c is '/' or '\\' or ':') | ||
| { | ||
| return false; | ||
| } | ||
| } | ||
|
|
||
| foreach (char invalid in Path.GetInvalidFileNameChars()) | ||
| { | ||
| if (fileName.IndexOf(invalid) >= 0) |
Comment on lines
+816
to
+826
| pager.hidden = true; | ||
| var frag = document.createDocumentFragment(); | ||
| for (var g = 0; g < order.length; g++) { | ||
| var bucket = buckets[order[g]]; | ||
| frag.appendChild(buildGroupHeader(bucket)); | ||
| if (!state.collapsedGroups[bucket.id]) { | ||
| for (var j = 0; j < bucket.tests.length; j++) { | ||
| frag.appendChild(buildRow(bucket.tests[j])); | ||
| } | ||
| } | ||
| } |
| row.className = "test-row"; | ||
| // For frameworks that emit multiple results for the same UID we need a key that is | ||
| // unique per row, not per UID, otherwise expanding one would expand all of them. | ||
| var rowKey = (t.attemptOf && t.attemptOf > 1) ? (t.uid + "#" + t.attemptIndex) : t.uid; |
Comment on lines
+89
to
+91
| // Note that we need to dispose the IFileStream, not the inner stream. | ||
| // IFileStream implementations will be responsible to dispose their inner stream. | ||
| using IFileStream stream = _fileSystem.NewFileStream(finalPath, fileNameExplicitlyProvided ? FileMode.Create : FileMode.CreateNew); |
| // For frameworks that emit multiple results for the same UID we need a key that is | ||
| // unique per row, not per UID, otherwise expanding one would expand all of them. | ||
| var rowKey = (t.attemptOf && t.attemptOf > 1) ? (t.uid + "#" + t.attemptIndex) : t.uid; | ||
| if (state.expanded[rowKey]) row.classList.add("expanded"); |
Comment on lines
+831
to
+844
| var hdr = document.createElement("div"); | ||
| hdr.className = "group-header" + (state.collapsedGroups[bucket.id] ? " collapsed" : ""); | ||
|
|
||
| var chev = document.createElement("div"); | ||
| chev.className = "chevron"; | ||
| chev.textContent = "▾"; | ||
| hdr.appendChild(chev); | ||
|
|
||
| var title = document.createElement("div"); | ||
| title.className = "title"; | ||
| title.textContent = groupLabel(bucket.id) || bucket.id; | ||
| hdr.appendChild(title); | ||
|
|
||
| var counts = document.createElement("div"); |
Comment on lines
+20
to
+21
| /// <inheritdoc /> | ||
| public string Version => ExtensionVersion.DefaultSemVer; |
Comment on lines
+91
to
+92
| if (fileName == "." || fileName == ".." || fileName.Contains("..")) | ||
| { |
Comment on lines
+103
to
+107
| // Append every terminal-state result. We intentionally do NOT deduplicate on | ||
| // TestNode.Uid: some test frameworks emit several distinct results sharing the | ||
| // same UID (parameterized rows, theory data, in-process retries, framework | ||
| // misbehavior). The engine surfaces all of them so no data is silently dropped. | ||
| _tests.Add(update); |
Evangelink
commented
May 16, 2026
Member
Author
Evangelink
left a comment
Evangelink
left a comment
There was a problem hiding this comment.
Review Summary — PR #8283: Microsoft.Testing.Extensions.HtmlReport
| # | Dimension | Status |
|---|---|---|
| 1 | Algorithmic Correctness | ✅ LGTM |
| 2 | Threading & Concurrency | ✅ LGTM — ConsumeAsync is always invoked from a single reader task (SingleReader = true); _tests and _testStartTime are not subject to concurrent mutation |
| 3 | Security & IPC Contract Safety | ✅ LGTM — AppendString correctly escapes <, >, &, ', \u2028, \u2029; IsValidPureFileName blocks path traversal |
| 4 | Public API & Binary Compatibility | ✅ LGTM — all public types declared in PublicAPI.Unshipped.txt, XML docs present, no init accessors |
| 5 | Performance & Allocations | OfType<TestMetadataProperty>() allocates per test node in BuildJson hot path |
| 6 | Cross-TFM Compatibility | ✅ LGTM — #if NETCOREAPP guards, polyfills included, no missing API usage |
| 7 | Resource & IDisposable Management | ✅ LGTM — IFileStream wrapped in using |
| 8 | Localization & Resources | ✅ LGTM — all user-facing strings in .resx, no hardcoded UI strings |
| 9 | Test Completeness & Coverage | 🚫 MAJOR — no unit tests ship with this new extension |
Blocking Concern
The PR adds a non-trivial new extension — custom JSON serializer with HTML escaping, filename validation with six rejection branches, duplicate-UID attempt tracking, field truncation — but ships zero unit tests. The codebase's test infrastructure (TestFramework.ForTestingMSTest) is already available. Both IsValidPureFileName and BuildJson are well-suited to pure unit testing (deterministic inputs/outputs, no I/O).
Generated by Expert Code Review (on open) for issue #8283 · ● 19.4M
| Dictionary<string, int> countByUid = new(testNodes.Length); | ||
| foreach (TestNodeUpdateMessage n in testNodes) | ||
| { | ||
| string uid = n.TestNode.Uid.Value; |
Member
Author
There was a problem hiding this comment.
[MAJOR] Test Completeness & Coverage
BuildJson contains several non-trivial code paths that are completely untested:
- Each outcome classification branch (
passed,failed,skipped,timedOut,errored) - The duplicate-UID
attemptIndex/attemptOfannotation - Field truncation at
MaxMessageLength,MaxStackTraceLength,MaxStandardStreamLengthboundaries - HTML-safe escaping of characters like
<,>,&,\u2028in test-controlled content
A broken JSON payload would silently corrupt every generated report without any test catching it.
Recommendation: Add unit tests for BuildJson covering each outcome, duplicate UIDs (verify correct attemptIndex/attemptOf), truncation at the exact boundary, and HTML-unsafe character escaping.
| } | ||
|
|
||
| string? stdout = node.Properties.SingleOrDefault<StandardOutputProperty>()?.StandardOutput; | ||
| string? stderr = node.Properties.SingleOrDefault<StandardErrorProperty>()?.StandardError; |
Member
Author
There was a problem hiding this comment.
[MODERATE] Performance & Allocations
In a large run (e.g. 50 000 tests), node.Properties.OfType<TestMetadataProperty>() allocates a new LINQ enumerator object on every iteration of the outer foreach loop — one heap object per test node.
Recommendation: Replace the LINQ OfType<T>() call with a plain loop and an is check to avoid the allocation:
foreach (TestProperty prop in node.Properties)
{
if (prop is not TestMetadataProperty meta) continue;
// ... existing body ...
}| return ValidationResult.InvalidTask(ExtensionResources.HtmlReportFileNameRequiresHtmlReport); | ||
| } | ||
|
|
||
| return commandLineOptions.IsOptionSet(HtmlReportOptionName) |
Member
Author
There was a problem hiding this comment.
[MAJOR] Test Completeness & Coverage
IsValidPureFileName has six distinct rejection branches (null/whitespace, leading/trailing whitespace, .. traversal, //\/: separator, Path.GetInvalidFileNameChars() scan, non-.html extension) but the PR ships no unit tests. A regression in any branch would go undetected.
Recommendation: Add unit tests covering each rejection case (e.g. "../evil.html", "sub/dir.html", " spaced.html", ".", "..", "report.txt") and at least one valid case ("report.html" → passes validation).
Addresses both the Copilot reviewer findings and the Expert reviewer critique on PR #8283. Engine & generator - Project incoming TestNodeUpdateMessage into a capped DTO (CapturedTestResult) immediately at consume time, so we no longer retain entire test node payloads for the whole session. Truncation caps protect the test host process, not only the file. - Replace OfType<TestMetadataProperty>() with a plain foreach + 'is' check to avoid the per-test LINQ enumerator allocation. - Add a retry loop for default file names: if the second-precision default file already exists, append "_1", "_2", ... until a unique name is found (5 s overall budget), mirroring TrxReportEngine. - Emit a stable per-row rowKey so the UI can use it as the expand- state key. This removes the synthetic "uid#attempt" key, which could collide with a UID that genuinely contains "#N". Filename validation - Replace Path.GetInvalidFileNameChars() (OS-dependent) with a hard- coded list that is a strict superset of Windows + Unix invalid file name characters. The same input is now rejected regardless of host. - Reject Windows reserved device names (CON, PRN, AUX, NUL, COM0..9, LPT0..9) up-front so the option doesn't pass validation only to fail later during file creation. HTML template - Default filter: when only errored or only timed-out tests are present (no real failures), open the report on that filter instead of "failed" (which would have shown an empty list). - Convert filter pills and sortable column headers from <span>/<div> to <button>, with aria-pressed / aria-sort state. - Make expandable test rows and group headers focusable (tabindex=0, role=button, aria-expanded) with Enter/Space keyboard activation. - Cap rendered rows per group (default 200) with "Show more" / "Show all" controls so switching to grouped view doesn't materialize tens of thousands of DOM nodes on a huge run. Tests - Add the HtmlReportGeneratorCommandLine to ExtensionVersionTests. - Add unit tests for Windows-invalid characters (*, ?, ", <, >, |), reserved Windows device names (CON, PRN, ...) on any OS, and a positive case for names like CONfig.html that just start with a reserved prefix. - Add unit tests for TestResultCapture: outcome classification for every well-known state, truncation at + 7 over the boundary, no-truncation when exactly at the boundary, null result for discovered/in-progress states. - Add HTML/JS escape tests for each of <, >, &, ', U+2028, U+2029. - Add a duplicate-UID test asserting attemptIndex / attemptOf emission and that unique UIDs do NOT get those fields. - Add a stable per-row rowKey test. - Add a default file-name retry test that asserts WriteAsync is called twice when the first file already exists and the resulting path has the "_1" disambiguation suffix. Build is clean: 0 warnings, 0 errors across the extension, the platform, the integration test project, and the extension unit test project on net462, net472, net8.0 and net9.0. Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>
Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>
Member
Author
|
Thanks for the thorough review — addressed every finding. Force-pushed
Code changes
Test counts
Screenshots refreshedThe screenshots in |
Comment on lines
+524
to
+532
| // Restore persisted UI state per report file (best-effort). | ||
| try { | ||
| var saved = JSON.parse(sessionStorage.getItem("mtp-state") || "{}"); | ||
| if (saved.filter) state.filter = saved.filter; | ||
| if (saved.sort) state.sort = saved.sort; | ||
| if (saved.sortDir) state.sortDir = saved.sortDir; | ||
| if (saved.search) state.search = saved.search; | ||
| if (saved.groupBy) state.groupBy = saved.groupBy; | ||
| if (typeof saved.pageSize === "number") state.pageSize = saved.pageSize; |
Comment on lines
+480
to
+483
| <div class="results-header" role="row"> | ||
| <button type="button" class="sortable" data-sort="outcome" aria-sort="none">Outcome</button> | ||
| <button type="button" class="sortable" data-sort="name" aria-sort="none">Test</button> | ||
| <button type="button" class="sortable duration" data-sort="duration" aria-sort="none" style="text-align:right">Duration</button> |
Comment on lines
+149
to
+155
| await _messageBus.PublishAsync( | ||
| this, | ||
| new SessionFileArtifact( | ||
| testSessionContext.SessionUid, | ||
| new FileInfo(reportFileName), | ||
| ExtensionResources.HtmlReportArtifactDisplayName, | ||
| ExtensionResources.HtmlReportArtifactDescription)).ConfigureAwait(false); |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Closes #5754.
Summary
Adds a new MTP extension
Microsoft.Testing.Extensions.HtmlReportthat produces a single, self-contained HTML test report at the end of a test session.--report-html— enable the HTML report.--report-html-filename <name>.html— override the file name. Must be a pure file name (no path, no drive letter, no.., no leading/trailing whitespace, no invalid file-name char).SessionFileArtifact, so other extensions anddotnet testpick it up like a TRX file.Screenshots

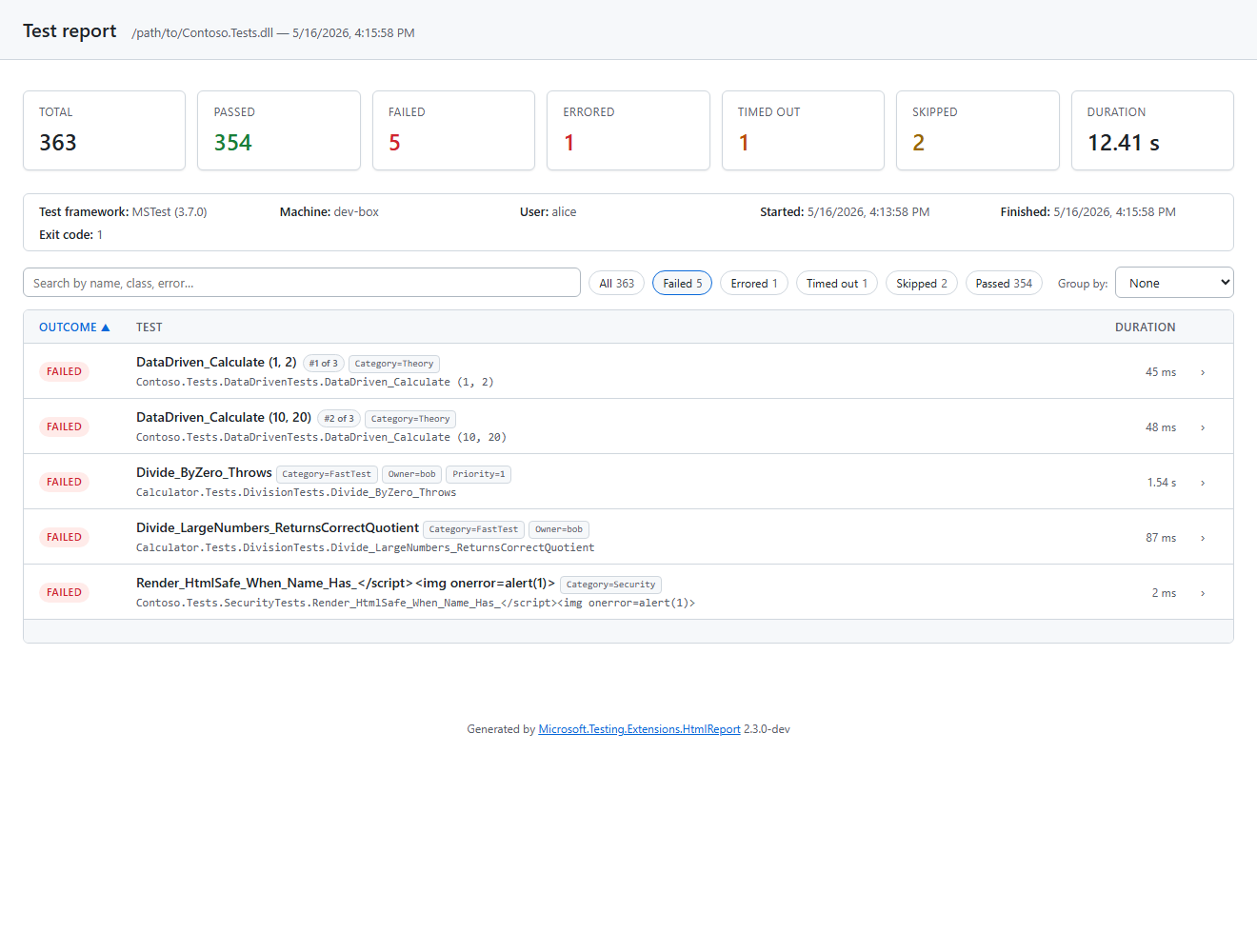

Default view — failures first, dynamic toolbar

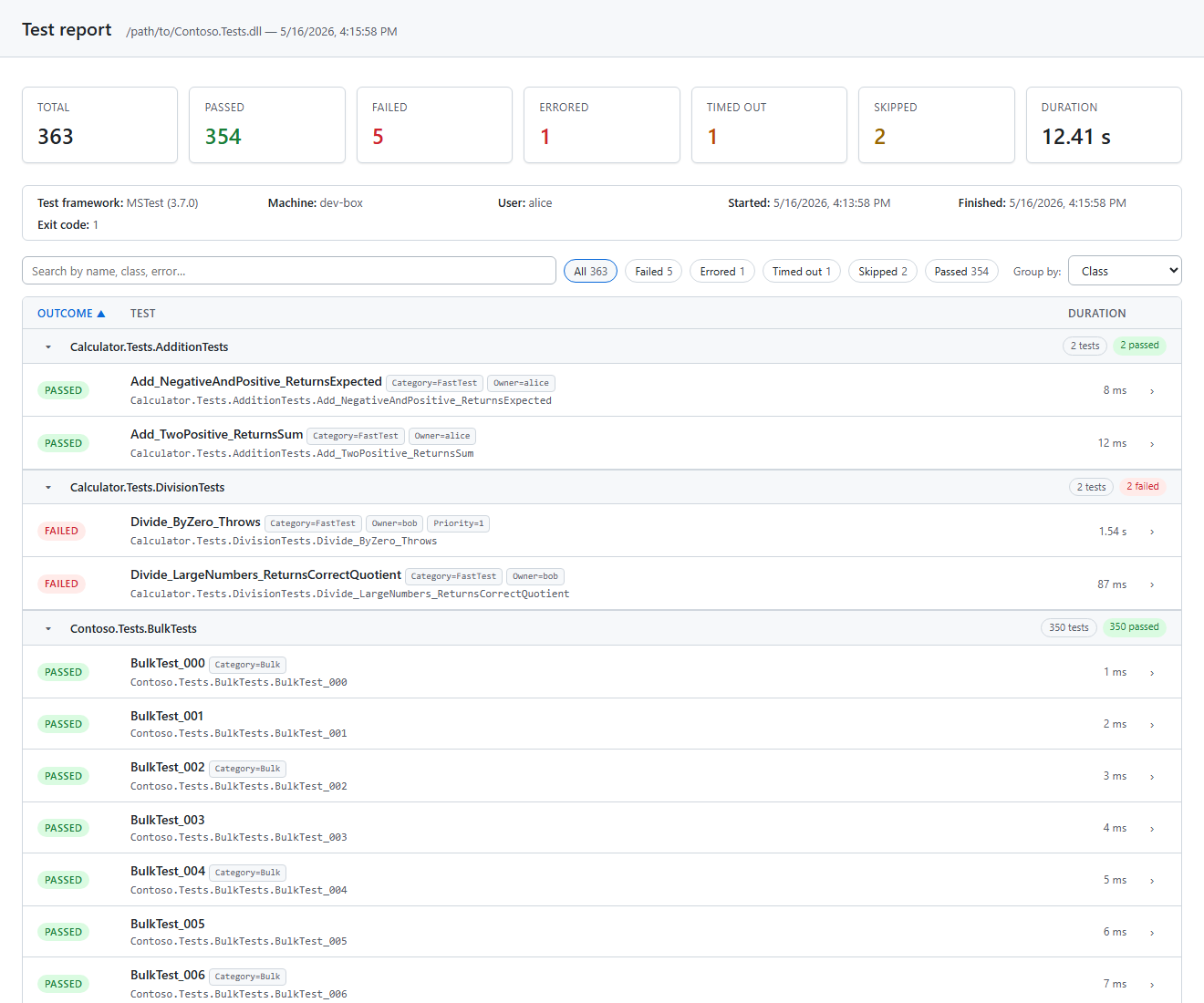

Grouped by Class

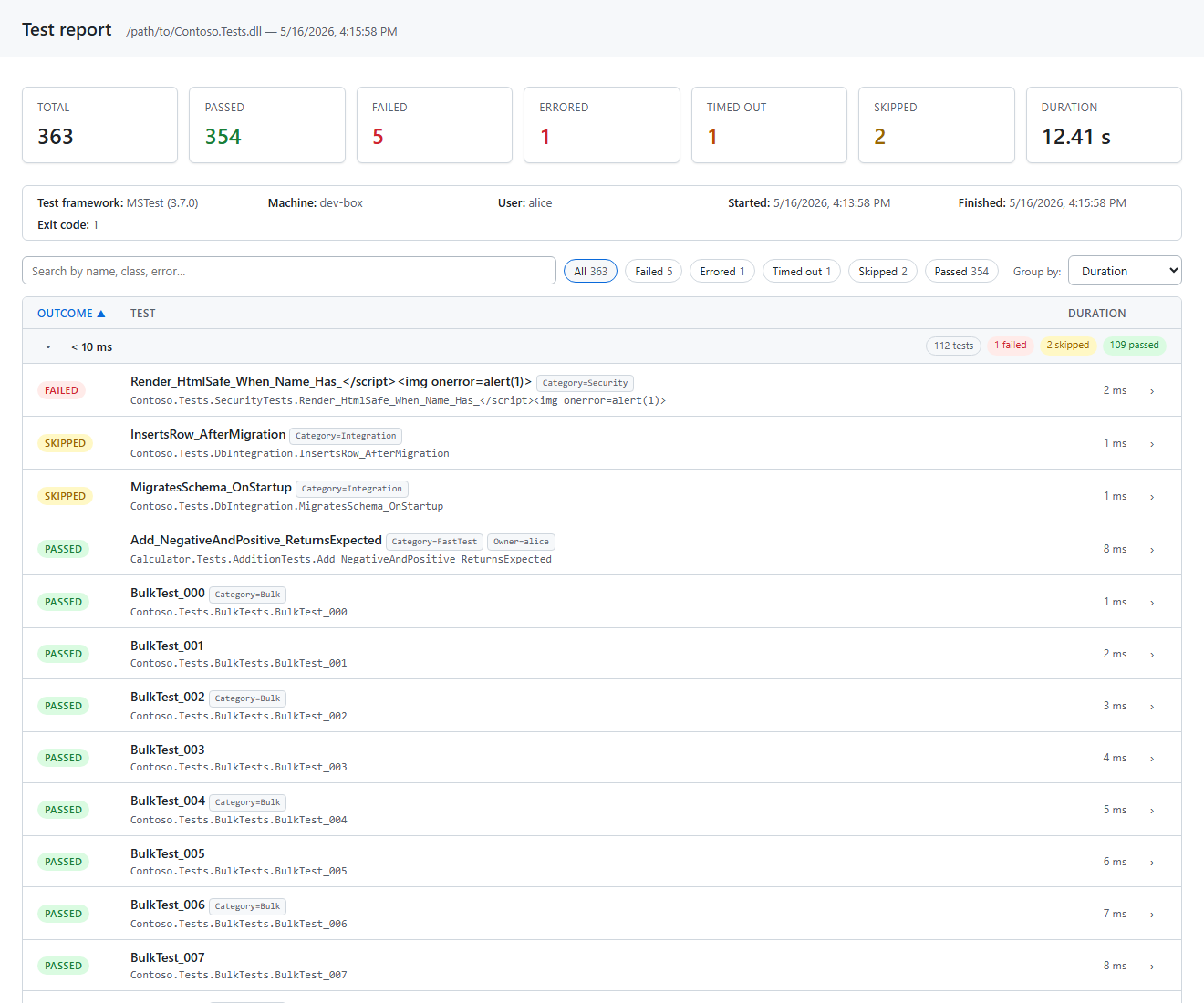

Grouped by Duration
Six buckets:
< 10 ms,10 ms – 100 ms,100 ms – 1 s,1 s – 10 s,10 s – 1 min,≥ 1 min.Grouped by Trait — dark theme

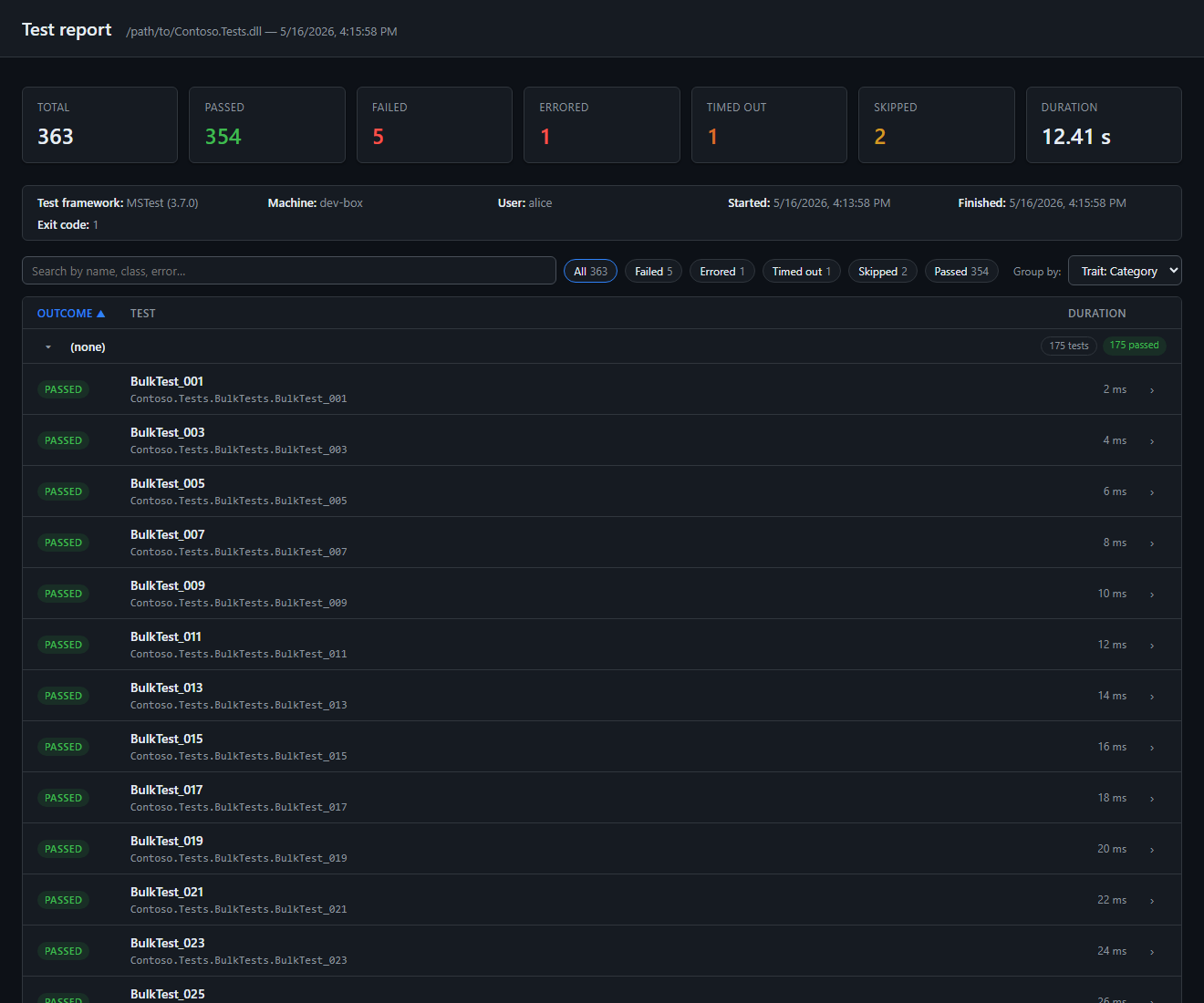

The toolbar gets one
Trait: <key>option per distinct trait/category found in the report.Multiple results for the same

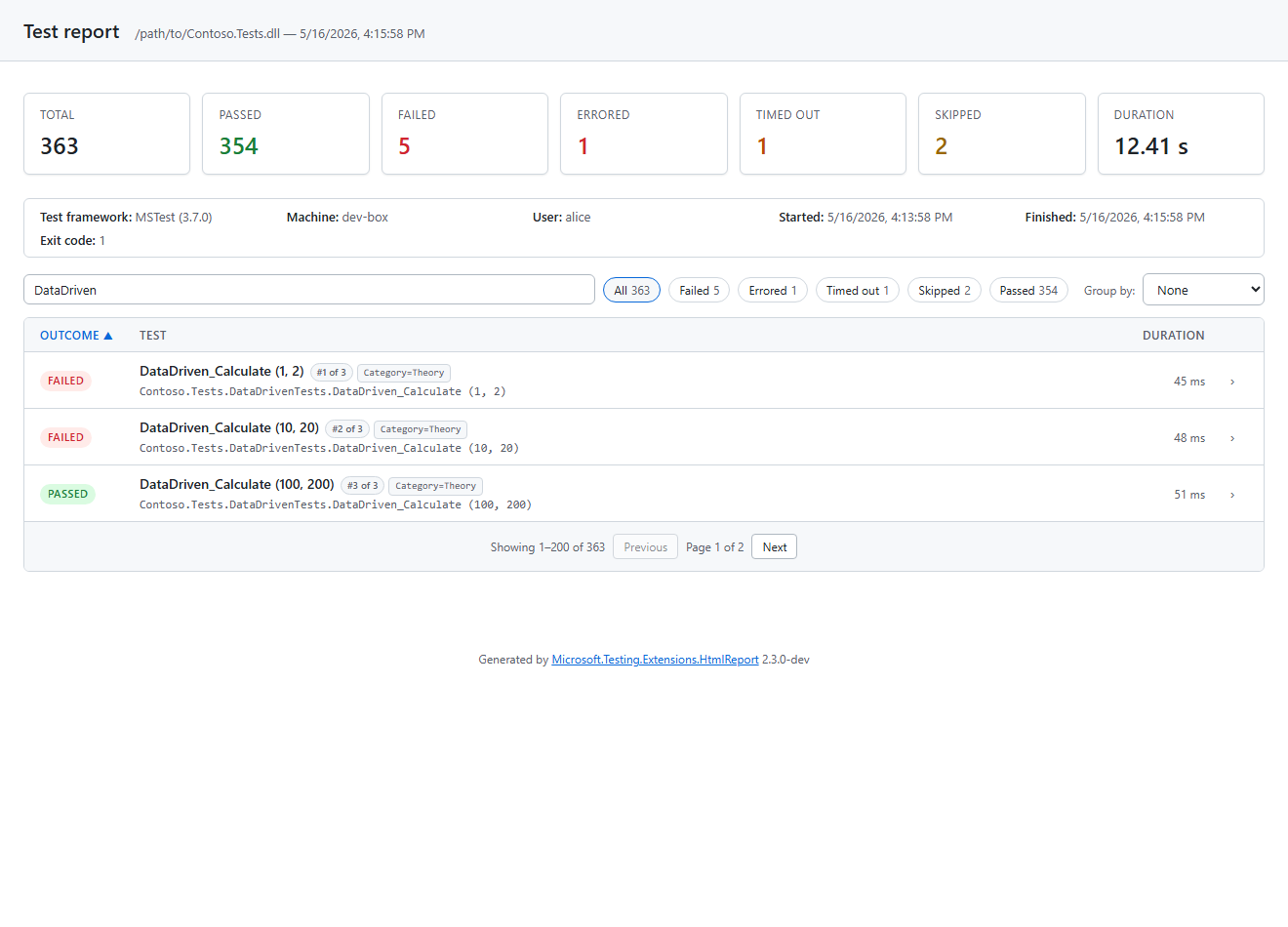

TestNode.UidSome test frameworks emit several distinct terminal-state results sharing the same
TestNode.Uid(parameterized rows, data-driven theories, in-process retries, framework bugs). The extension never deduplicates — every observation is preserved and the affected rows get a#N of Mbadge so users can tell them apart.UX details
prefers-color-scheme.Trait: <key>(one option per distinct trait key in the report). Group headers are collapsible and show per-outcome counts.sessionStorageso refreshing the page keeps your view.Security: handling test-controlled content safely
The data is embedded as a JSON island inside
<script type="application/json">. A hand-rolled HTML-safe JSON encoder escapes<,>,&,',\u2028,\u2029and all control characters as\uXXXXso that test-controlled content (display names, stack traces, stdout/stderr) cannot break out of the script block. The renderer always usestextContent, neverinnerHTML.A regression test (
GenerateReportAsync_EscapesScriptInjection_InDisplayName) verifies that hostile payloads such as</script><img onerror=alert(1)>never appear literally in the produced HTML.Duplicate UIDs
Some test frameworks misuse
TestNode.Uid(or legitimately reuse it across parameterized rows / in-process retries). The consumer therefore:attemptIndex/attemptOfonly on rows whose UID is non-unique.#N of Mbadge on those rows and uses a synthetic per-row key for expand/collapse state so the rows stay independent.Standard output / standard error
Already handled — captured from
StandardOutputProperty/StandardErrorPropertyand rendered in the expandable detail panel (truncated to 32 KiB with a UI-visible marker for very large streams).Retries
For host-level retries (
--retry-failed-tests), each attempt runs in its own results directory, so each gets its own HTML report — same behaviour as TRX. Within a single host run, in-process retries are surfaced via the#N of Mmechanism above.Performance
netstandard2.0without aSystem.Text.Jsondependency, AOT/trim safe.Future hook: live updates (out of scope for this PR)
The page exposes a global
window.mtpRender(newReport)function. A future OpenTelemetry / SSE / WebSocket integration can stream deltas and call this function to refresh the page in place without reloading. None of the current code is structured in a way that closes the door on this.Files
src/Platform/Microsoft.Testing.Extensions.HtmlReport/Microsoft.Testing.Extensions.HtmlReport.csproj(multi-targetsnetstandard2.0;$(SupportedNetFrameworks)).HtmlReportExtensions.AddHtmlReportProvider()+TestingPlatformBuilderHook(auto-registered via MSBuildprops).HtmlReportGeneratorCommandLine,HtmlReportGenerator(IDataConsumer,ITestSessionLifetimeHandler,IDataProducer,IOutputDeviceDataProducer),HtmlReportEngine.Templates/report-template.html(embedded resource).Resources/ExtensionResources.resx+ 12.xlffiles generated viadotnet msbuild ... /t:UpdateXlf.PACKAGE.md,BannedSymbols.txt,PublicAPI/,build/,buildMultiTargeting/,buildTransitive/.TestFx.slnx: project registered.src/Platform/Microsoft.Testing.Platform/Microsoft.Testing.Platform.csproj:InternalsVisibleToadded.test/IntegrationTests/.../HelpInfoAllExtensionsTests.cs: expectations updated for--report-html/--report-html-filenamelines, the newHtmlReportGeneratorCommandLine--infoblock, and the newPackageReferencein the AllExtensions test asset.test/IntegrationTests/.../MSBuild.KnownExtensionRegistration.cs: assertion added for the newTestingPlatformBuilderHookand--report-html, plus a newPackageReference.test/UnitTests/.../HtmlReportGeneratorCommandLineTests.csandHtmlReportEngineTests.cs: 21 new tests covering CLI validation, JSON shape, traits, duplicate-UID handling, output truncation and HTML/JS injection.docs/images/html-report/— screenshots used in this PR description.Public API
Only two public types / two members:
Both declared in
PublicAPI.Unshipped.txt. Noinitaccessors.Validation
Microsoft.Testing.Extensions.HtmlReportbuilds clean acrossnetstandard2.0;net8.0;net9.0;net462;net472.Microsoft.Testing.PlatformandMicrosoft.Testing.Platform.Acceptance.IntegrationTestsbuild clean (0 warnings, 0 errors).Microsoft.Testing.Extensions.UnitTestspass onnet9.0(84 pre-existing + 21 new)../build.cmd -packto publish the new package before they can run end-to-end; the expectation files are updated so those tests will match on the next pack.
