Deoverlap

De-overlap vector strokes to prevent overdrawing.

Source, examples and issues: github.com/piLeoni/deoverlap

Where strokes run on top of each other, deoverlap keeps one and cuts the others back, so no area gets drawn twice. One Rust engine, three front ends: a Python library (Shapely geometries), a vpype command for SVG plotter pipelines, and Node.js bindings over flat coordinate buffers.

A street map drawn with a 0.5 mm pen: before (left), what was cut away (middle), after (right). Blue is kept, red is removed, orange is the corridor mask — the same colours in every figure below.

Quick start

Python

pip install deoverlap

from shapely.geometry import LineString
from deoverlap import deoverlap

geoms = [
    LineString([(0, 0), (2, 0)]),
    LineString([(1, 0.05), (3, 0.05)]),  # parallel, 0.05 away
]
result = deoverlap(geoms, tolerance=0.1)

print(len(result.kept), "surviving geometries")  # 2: the second is cropped
print("wholly removed:", result.wholly_removed)  # []

tolerance is a distance in the same units as the geometries: strokes closer than this to a kept stroke are cut. For a plotter, use the pen width.

vpype

pip install "deoverlap[vpype]"
vpype read map.svg deoverlap -t 0.1mm -l 1,2,3 write out.svg

Same options as the Python function (--self-overlap ↔ self_overlap=True); only the tolerance has a default here, 0.1mm. Full flag list: vpype plugin.

Node.js

npm install deoverlap

Geometries are flat coordinate arrays; the Node guide has JavaScript examples for every option and a GeoJSON converter.

How it works

Geometries are processed one at a time, in priority order. Each kept stroke gets a corridor of radius tolerance around it, and every later stroke loses the parts that fall inside a corridor. The options below decide which stroke goes first (prefer), which nearby strokes count as overlapping (angle), and what to do with the leftovers of a cut stroke (drop, min_length).

Prefer — which stroke wins

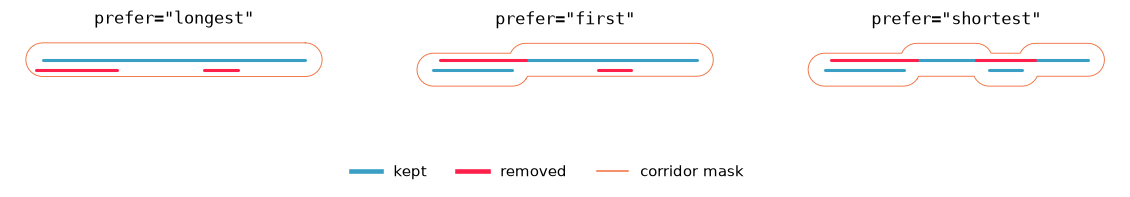

The processing order decides which of two overlapping strokes is kept whole:

prefer=	Behaviour
longest (default)	The stroke that covers more ground wins
first	Input order
shortest	Short marks / detail win

Original indices are preserved in result.kept_parts / removed_parts even when processing order changes.

Angle — which strokes count as overlapping

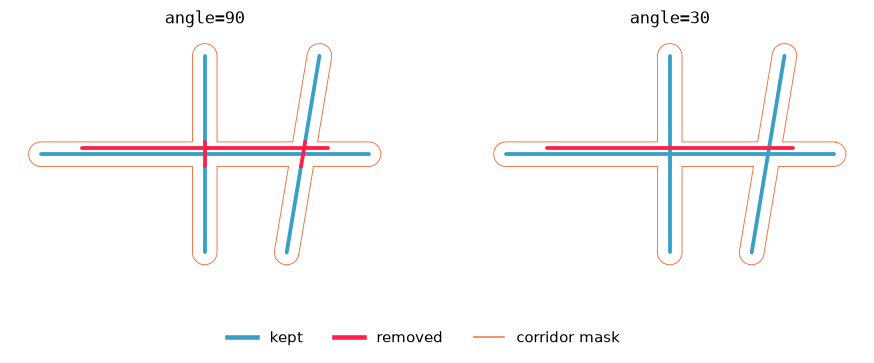

Two strokes overlap only where their directions differ by at most angle degrees (default 30). Parallel runs and shallow merges are cropped; crossings steeper than that are left alone. angle=90 counts every nearby stroke, so crossings get cut too.

result = deoverlap(geoms, tolerance=0.1, angle=90)  # cut crossings too

Directions are compared locally, edge by edge, so a curving ramp is cropped only where it actually runs alongside another road, whatever direction its two ends point in.

Where two strokes meet at an angle θ, they overlap for roughly pen / sin θ: about 2 pen widths at 30° and 4 at 15°. The default of 30° catches parallel runs and trims shallow merges; 45° or 60° trim steeper merges too.

Crop or drop

By default the overlap is cut away and the rest of the stroke is kept. With drop=0.5, a stroke that would lose more than half its length is discarded whole instead of leaving stubs.

A dropped stroke has no entry in kept_parts and its index is listed in wholly_removed. With keep_duplicates=True, removed_parts holds the original geometry unchanged.

min_length= drops pieces shorter than that after cutting (points are never removed by it).

Split pieces stay one object

A ring crossed by another stroke is cut into two arcs. They come back as one MultiLineString under the ring's input index, not as two anonymous pieces:

cutter = LineString([(1, -1), (1, 3)])
ring = LineString([(0, 0), (2, 0), (2, 2), (0, 2), (0, 0)])
result = deoverlap([cutter, ring], 0.15, prefer="first", angle=90)

result.kept_parts[1]  # MultiLineString with both arcs

One colour per object. On the left, both halves of the ring are one entry of result.kept; on the right, flatten_geometries(result.kept) splits them into separate single parts, when that is what you need:

Self-overlap

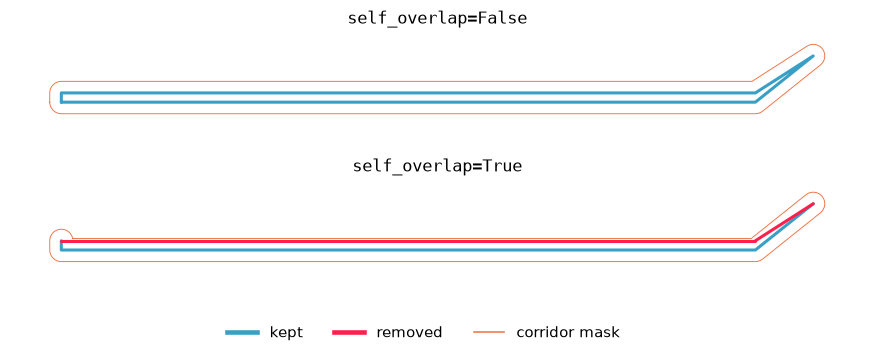

A thin road outline is often one LineString (left kerb → end cap → right kerb). Normally deoverlap never compares a geometry to itself, so the two sides stay as a heavy double stroke. With self_overlap=True every edge is its own corridor, so opposite sides can suppress each other. Neighbouring edges never cut each other, so joints are not nibbled, unless the path folds back on itself like a hairpin.

Multi-stage with a carried mask

To process batches separately (for example, main roads first, then side streets), pass the previous result as mask:

r1 = deoverlap(batch1, 0.1)
r2 = deoverlap(batch2, 0.1, mask=r1)  # or mask=r1.mask

Stage 2 is clipped against everything stage 1 kept.

Result

deoverlap(...) returns a DeoverlapResult:

Field	Meaning
kept	Surviving geometries, one per input that kept something, in processing order
removed	Cut pieces, flattened (if keep_duplicates=True)
kept_parts	{input_index: geometry}
removed_parts	{input_index: geometry} (if keep_duplicates=True)
wholly_removed	Indices of inputs with nothing kept
mask	Corridor polygons, for a next stage

Performance

The Python wheel is a compiled extension (no Rust toolchain at install time). The engine builds no polygons: the corridor of a straight edge is a capsule, and the part of another edge inside it is computed exactly. On the MacArthur Maze map below (1473 paths) a run takes about 30 ms.

vpype plugin

pip install "deoverlap[vpype]" registers a deoverlap command. Each layer is processed on its own; -l picks which ones.

Flag	Default	Meaning
-t, --tolerance	0.1mm	Corridor radius, usually the pen width
--prefer	longest	longest | first | shortest
--angle	30	Max direction difference in degrees; 90 cuts crossings too
--self-overlap	off	Let parts of one path cut each other
-m, --min-length	0mm	Drop pieces shorter than this after cutting
--drop	off	Discard a stroke when more than this fraction would be cut
-k, --keep-duplicates	off	Keep removed pieces in a separate layer
-p, --progress-bar	off	Display a progress bar
-l, --layer	all	Target layer(s)

-t, -l, -k and -p follow the usual vpype conventions; -m matches vpype filter.

Chain the command to give each layer its own settings:

vpype read map.svg \
  deoverlap -t 0.1mm -l 3,4 \
  deoverlap -t 0.15mm --self-overlap -l 5 \
  write opt.svg

Walkthrough with the bundled example

examples/parallel_strokes.svg is a tiny card with two near-parallel pairs (0.05 mm apart), one deliberate cross, and a dual-kerb rectangle drawn as a single polyline. Run the commands and open the outputs side by side.

# Inspect path count / drawn length
vpype read examples/parallel_strokes.svg stat

# Crop near-parallel duplicates; leave the perpendicular cross alone
vpype read examples/parallel_strokes.svg \
  deoverlap -t 0.1mm -l 1 \
  write examples/out_parallel.svg

# Same, but also let the dual-kerb ring collapse against itself
vpype read examples/parallel_strokes.svg \
  deoverlap -t 0.12mm --self-overlap -l 1 \
  write examples/out_self_overlap.svg

vpype read examples/out_parallel.svg stat
vpype read examples/out_self_overlap.svg stat

What to look for (in the SVG or in stat’s drawn length):

1. Before — each parallel pair is a double stroke; the ring reads as a heavy double outline.
2. out_parallel.svg — each pair reduced to one survivor; the cross still there; the ring still double (one geometry cannot overlap itself).
3. out_self_overlap.svg — the ring’s opposite sides suppress each other, so the dual kerb thins toward a single outline.

A real map: the MacArthur Maze

examples/macarthur_maze.svg is a 3 km square of Oakland's MacArthur Maze interchange from OpenStreetMap, scaled onto a 100 mm card (1 mm ≈ 33 m). At that scale dual carriageways, stacked ramps and frontage roads sit a fraction of a millimetre apart, so a 0.5 mm pen draws the same paper two or three times. Set the tolerance to the pen width: anything closer than that would overlap on paper.

vpype read examples/macarthur_maze.svg stat
vpype read examples/macarthur_maze.svg \
  deoverlap -t 0.5mm --angle 90 -m 1mm \
  write examples/out_maze.svg
vpype read examples/out_maze.svg stat

The whole card after this run; the dashed box is the zoom shown at the top of this page:

--angle 90 is the maximum: every nearby stroke counts, whatever its direction. Side streets stop where the main road's ink begins, and at crossings the shorter path is split around the longer one. The gap is exactly the other road's ink width, so on paper the crossing still looks whole, just without the dark spot of doubled ink.

Cutting leaves fragments; almost every piece under 1 mm on this card is one. -m 1mm (two pen widths) drops them. The path count goes from 1473 to 860 and the drawn length drops by 35%.

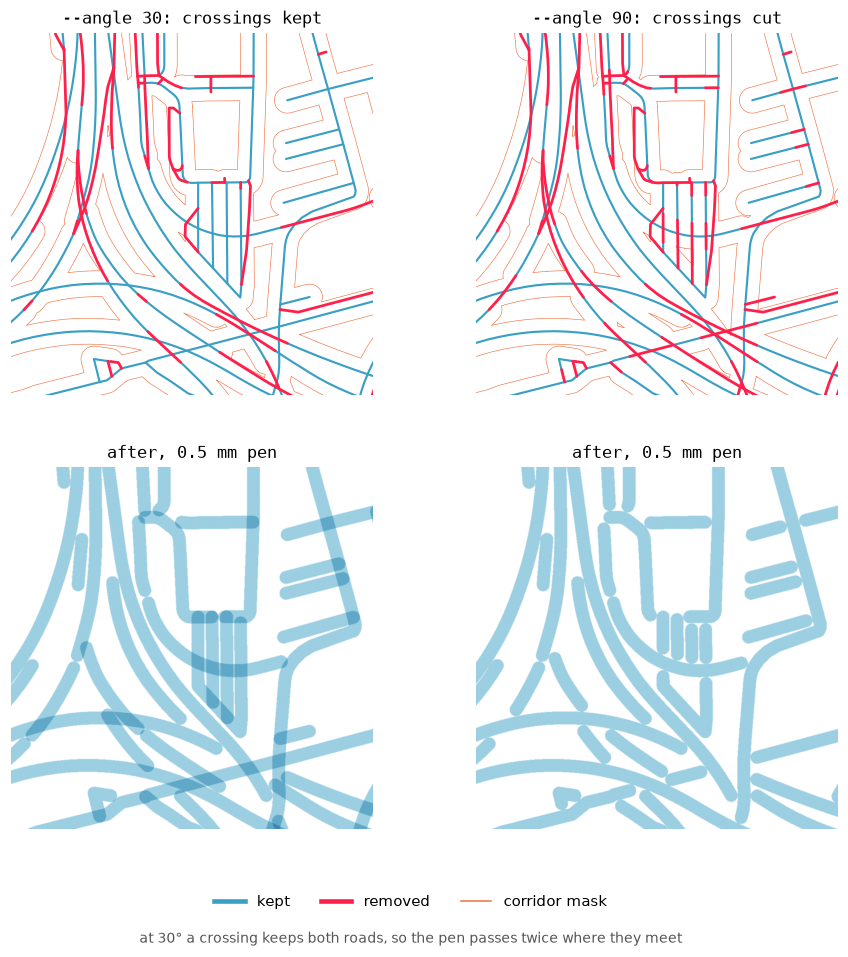

With the default --angle 30 crossings are left alone: parallel runs are still merged, but both roads are drawn through every junction, and the card loses about 23% instead of 35%. The same zoom, crossings kept and cut:

Keep crossings when every stroke must stay continuous (e.g. for later editing); cut them when only the ink on paper matters.

To try another place (needs pip install osmnx):

python examples/fetch_osm_example.py --lat 51.5074 --lon -0.1278 --radius 1500 \
  --out examples/my_place.svg

All README figures are rendered from the committed files by python examples/make_figures.py (needs matplotlib).

Map data © OpenStreetMap contributors, available under the ODbL.

API

deoverlap(
    geometries,
    tolerance,
    *,
    prefer="longest",      # longest | first | shortest
    angle=30.0,            # degrees, 0–90; 90 cuts crossings too
    self_overlap=False,
    min_length=0.0,
    drop=None,             # fraction 0–1; None always crops
    keep_duplicates=False,
    progress_bar=False,
    mask=None,
) -> DeoverlapResult
