ADB-API

ADB-API is a Python-based application that helps you control Android TV streamers (such as the Xiaomi Mi Box) over the network. It connects to your devices over ADB (Android Debug Bridge) and exposes them through a simple REST API built with FastAPI, plus a browser-based virtual remote. It is aimed at home-automation users who want to drive their streamers from scripts, dashboards, or tools such as Home Assistant and n8n.

With ADB-API, you can easily do the following things:

Use a virtual remote in your browser.
List all configured devices.
Get device properties (version, OS, and more).
Get device memory usage.
Get device CPU information.
Get the list of installed applications (system and third-party), enriched with the app name, Google Play link, and icon.
Open or close any installed app.
Take a screenshot from the device.
Execute shell commands.
Send key events (a single key or a key chain).

Features

Multi-device support – every device listed in devices.yaml is connected at startup over ADB/TCP.
Virtual remote – a Mi Box style remote at /remotes/mibox with a device selector, navigation (up/down/left/right/OK), Home, Back, and volume buttons.
Device information – system properties (getprop), memory (/proc/meminfo), and CPU (/proc/cpuinfo).
App management – list system and third-party packages, launch an app, or force-stop it.
App metadata cache – app names, Google Play URLs, and icons are fetched with google-play-scraper and cached in a local SQLite database, so later calls are faster.
Screenshots – capture the device screen and download it as a PNG.
Raw shell access – run any adb shell command and get its output as a JSON list of lines.
Automatic key generation – an ADB RSA key pair is generated on first start and stored in the config directory.
Interactive API docs – Swagger UI at /docs (ReDoc at /redoc).
Multi-arch Docker image – linux/amd64, linux/arm64, and linux/arm/v7.

How It Works

flowchart LR
    Client["Browser / script / automation"] -- HTTP :80 --> API["ADB-API (FastAPI + Uvicorn)"]
    API -- "ADB over TCP (default 5555)" --> TV1["Android TV device 1"]
    API -- "ADB over TCP" --> TV2["Android TV device 2"]
    API -- "app metadata lookup" --> Play["Google Play"]
    API --- Config[("config/: devices.yaml, adb keys, appinfo.db")]

On startup, ADB-API loads (or generates) its ADB RSA key pair from the config directory.
It reads config/devices.yaml and opens an ADB connection to each device. Devices that can't be reached at startup are skipped.
Each API call identifies the target device by its IP address, reconnects to it, and runs the matching adb shell command.
When listing apps, package details are looked up on Google Play (language en, country il) and cached in config/appinfo.db.

Components and Libraries Used in ADB-API

FastAPI - FastAPI framework, high performance, easy to learn, fast to code, ready for production.
Uvicorn - lightning-fast ASGI server implementation, using uvloop and httptools.
Jinja - fast, expressive, extensible templating engine.
aiofile - Real asynchronous file operations with asyncio support (from the techblog/fastapi base image; not imported by the app).
loguru - An object to dispatch logging messages to configured handlers.
python-multipart - A streaming multipart parser for Python (from the techblog/fastapi base image; not imported by the app).
requests - elegant and simple HTTP library for Python, built for human beings.
google-play-scraper - Google-Play-Scraper provides APIs to easily crawl the Google Play Store for Python without any external dependencies!
dataclasses-json - This library provides a simple API for encoding and decoding dataclasses to and from JSON.
adb-shell - A Python implementation of ADB with shell and FileSync functionality.
PyYAML - YAML parser and emitter for Python.

Requirements

One or more Android TV based devices (for example, Xiaomi Mi Box) with Developer options and USB debugging enabled, reachable from the ADB-API host over the network.
Docker and Docker Compose (recommended), or Python 3 to run from source.
The container/host must be able to reach each device's ADB port (usually 5555).
Outbound internet access if you want app names and icons from Google Play (optional; failures are logged and empty values are returned).

Installation and Configuration

1. Enable developer mode on the streamer

In order to use ADB-API, you need to enable "Developer mode" on the Android TV based streamer. To do so, follow the next steps:

On your TV device, navigate to Settings.
In the Device row, select About.
Scroll down to Build and select Build several times until you get the message "You are now a developer!"
Return to Settings. In the Preferences row, select Developer options.
Select Debugging > USB debugging and select On.
Navigate back to the TV home screen.

Some devices have a separate "Network debugging" / "ADB over network" option. If yours does, enable it as well so the device accepts ADB connections over TCP.

2. Run the container

Now that Developer mode is enabled, it's time to install the ADB-API Docker container. To do so, create a file named docker-compose.yaml and add the following code:

version: "3.7"

services:

  adb_api:
    image: techblog/adb-api
    container_name: adb-api
    privileged: true
    restart: always
    ports:
      - "80:80"
    volumes:
      - ./adb-api/config:/app/config

Create a folder named adb-api/config at the same level as the YAML file, and create a new file named devices.yaml inside it with the following content:

devices:

  - id: 1
    name:
    ip:
    port:

  - id: 2
    name:
    ip:
    port:

And update the devices list according to your devices' details, for example:

devices:

  - id: 1
    name: Mibox Work-Room
    ip: 192.168.0.12
    port: 5555

You can set the path for the config directory. The one in the code sample is just an example.

Now, run the following command to install and start the container:

docker compose up -d

(Use docker-compose up -d if you still run the standalone Compose v1 binary.)

Or, with plain Docker:

docker run -d --name adb-api --privileged --restart always \
  -p 80:80 -v "$(pwd)/adb-api/config:/app/config" techblog/adb-api

After the container starts, more files will be added to the config directory:

Two key files for connecting to the devices (adb and adb.pub, the ADB RSA key pair).
An SQLite database (appinfo.db) that caches app details to speed up the app-list API calls.

If devices.yaml doesn't exist, the default template (with empty values) is copied into the config directory; fill it in and restart the container.

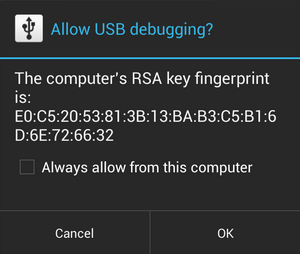

You will also see the following message pop up on each of your streamers:

Make sure to check the "Always allow from this computer" checkbox and click the OK button. You will also need to restart the container (devices are only registered if the connection succeeds at startup).

Configuration Reference

ADB-API has no environment variables or command-line flags that change its behavior. All configuration lives in the config directory (/app/config inside the container).

`devices.yaml`

Key	Type	Required	Description
`devices`	list	yes	List of devices to connect to at startup.
`devices[].id`	integer	yes	Numeric identifier, returned by `/api/devices`.
`devices[].name`	string	yes	Display name (shown in the virtual remote's device selector).
`devices[].ip`	string	yes	Device IP address. This is the value used as `{device}` in every API call.
`devices[].port`	integer	yes	ADB TCP port, usually `5555`.

Files and ports

Item	Value	Description
HTTP port	`80`	Fixed in the code (`uvicorn.run(..., port=80)`). Map it to another host port with `-p <host-port>:80`.
Config volume	`/app/config`	Holds `devices.yaml`, `adb`, `adb.pub`, and `appinfo.db`. Persist it.
ADB private key	`config/adb`	Generated on first start if missing.
ADB public key	`config/adb.pub`	Generated on first start if missing.
App cache	`config/appinfo.db`	SQLite cache of Google Play app details.
Screenshots	`/app/dist/screenshots/`	Screenshots pulled from devices (not in the config volume).
Docker image	`techblog/adb-api`	Tags: `latest` and the version from the `VERSION` file (e.g. `2.2.0`).

The Dockerfile sets LOG_LEVEL=DEBUG, but the application code does not read it.

Working with ADB-API

Swagger / OpenAPI

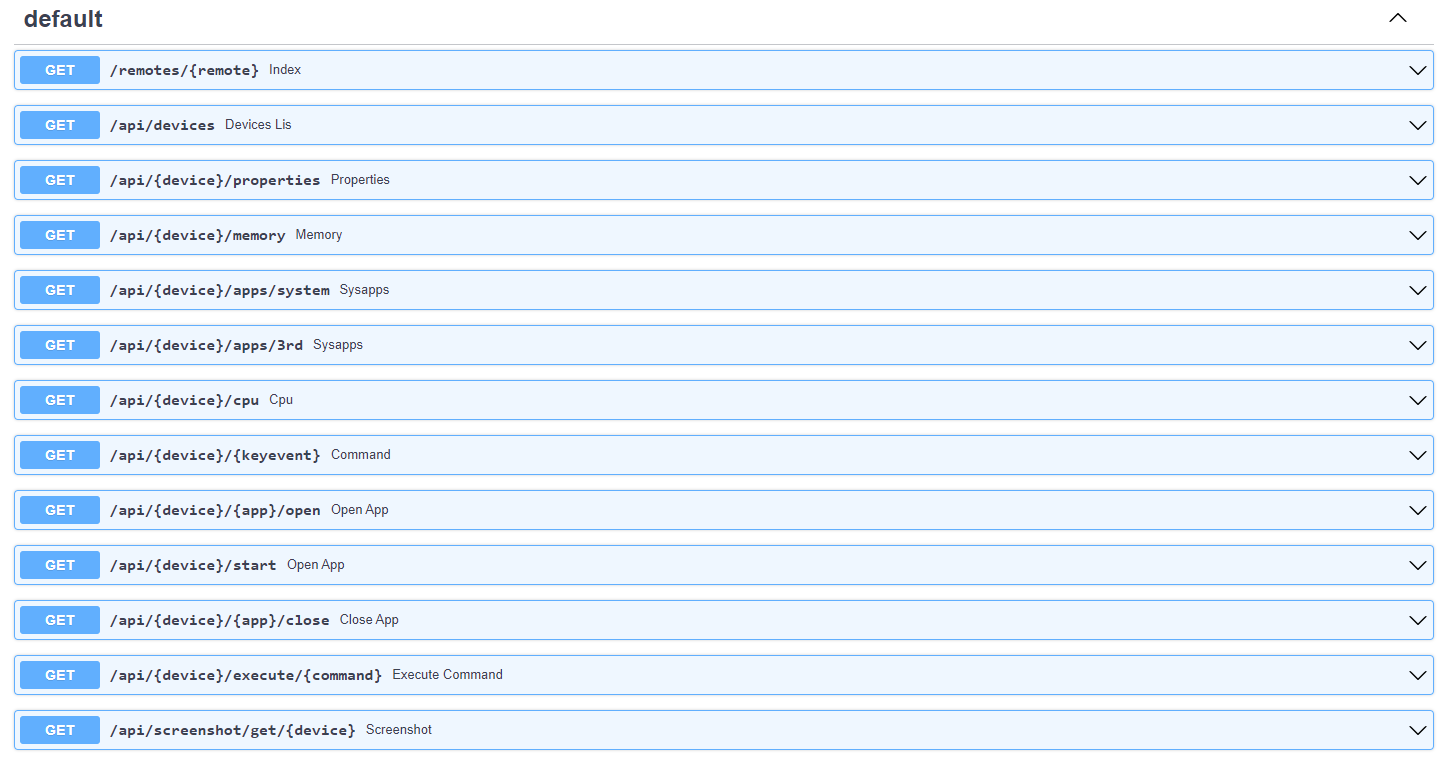

ADB-API also includes OpenAPI (Swagger) documentation to help you work with the system. With Swagger you can test the API calls very easily.

To access the Swagger documentation, add /docs to the end of the server URL, for example: http://[server-address]:[port]/docs

Virtual remote

Open http://[server-address]:[port]/remotes/mibox in a browser, pick a device from the drop-down list, and use the buttons. Each button sends a key event through GET /api/{device}/{keyevent}:

Button	Key event
Volume up / down	`24` / `25`
Left / Right	`21` / `22`
Up / Down	`19` / `20`
OK	`66`
Home	`3`
Back	`4`

The Power and Microphone buttons have no key event assigned in the current template.

Examples with curl

# List devices
curl http://localhost/api/devices

# Press Home on 192.168.0.12
curl http://localhost/api/192.168.0.12/3

# Press Volume Down twice (space URL-encoded as %20)
curl "http://localhost/api/192.168.0.12/25%2025"

# Open Plex
curl http://localhost/api/192.168.0.12/com.plexapp.android/open

# Read the system volume
curl "http://localhost/api/192.168.0.12/execute/settings%20get%20system%20volume_system"

# Save a screenshot
curl -o screen.png http://localhost/api/screenshot/get/192.168.0.12/screen

API Endpoints

All endpoints use GET. {device} is always the IP address of the streamer as configured in devices.yaml.

Path	Description
`/api/devices`	List the devices from `devices.yaml`.
`/api/{device}/properties`	Device system properties (`getprop`).
`/api/{device}/memory`	Memory info (`/proc/meminfo`).
`/api/{device}/cpu`	CPU info (`/proc/cpuinfo`) plus core count (see note below).
`/api/{device}/apps/system`	Installed system apps with Google Play details.
`/api/{device}/apps/3rd`	Installed third-party apps with Google Play details.
`/api/{device}/{keyevent}`	Send one or more key events (`input keyevent ...`).
`/api/{device}/{app}/open`	Launch an app by package name.
`/api/{device}/{app}/close`	Force-stop an app by package name.
`/api/{device}/execute/{command}`	Run a shell command and return its output lines. A command that is literally `open` or `close` is caught by the app open/close routes, which are declared first.
`/api/screenshot/get/{device}/{image}`	Take a screenshot and return it as a PNG file.
`/remotes/{remote}`	Render a virtual remote template (currently `mibox`).
`/docs`, `/redoc`, `/openapi.json`	API documentation generated by FastAPI.

Get devices list: /api/devices. Returns JSON with the registered devices.

{
  "devices": [
    {
      "id": 1,
      "name": "Mibox Work-Room",
      "ip": "192.168.0.12",
      "port": 5555
    },
    {
      "id": 2,
      "name": "Mibox Parents",
      "ip": "192.168.0.235",
      "port": 5555
    }
  ]
}

Get device properties: /api/{device}/properties. Returns JSON with the device properties (dots in property names are replaced with underscores). The device parameter is the IP address of the streamer. Example (truncated):

{
  "net_bt_name": " Android",
  "persist_sys_locale": " he-IL",
  "persist_sys_media_avsync": " true",
  "persist_sys_timezone": " Asia/Jerusalem",
  "persist_sys_usb_config": " adb",
  "persist_sys_webview_vmsize": " 139176216",
  "pm_dexopt_ab-ota": " speed-profile",
  "pm_dexopt_bg-dexopt": " speed-profile",
  "pm_dexopt_boot": " verify",
  "pm_dexopt_first-boot": " quicken",
  "pm_dexopt_inactive": " verify",
  "pm_dexopt_install": " speed-profile",
  "pm_dexopt_priv-apps-oob": " false",
  "pm_dexopt_priv-apps-oob-list": " ALL",
  "pm_dexopt_shared": " speed",
  "ro_actionable_compatible_property_enabled": " true",
  "ro_adb_secure": " 1",
  "ro_allow_mock_location": " 0",
  "ro_boot_hardware": " amlogic",
  "ro_boot_oemkey1": " ATV00100021M19",
  "ro_boot_reboot_mode": " cold_boot",
  "ro_boot_rpmb_state": " 0",
  "ro_boot_selinux": " enforcing",
  "ro_boot_serialno": " 18554284042375",
  "ro_boot_vbmeta_avb_version": " 1.1",
  "ro_boot_vbmeta_device": " /dev/block/vbmeta",
  "ro_boot_vbmeta_device_state": " locked",
  "ro_bootimage_build_date": " Tue Sep 28 18",
  "ro_bootimage_build_date_utc": " 1632823795",
  "ro_bootimage_build_fingerprint": " Xiaomi/oneday/oneday",
  "ro_bootloader": " unknown",
  "ro_bootmode": " unknown",
  "ro_build_characteristics": " default",
  "ro_build_date": " Tue Sep 28 18",
  "ro_build_date_utc": " 1632823795",
  "ro_build_description": " oneday-user 9 PI 3933 release-keys",
  "ro_build_display_id": " PI.3933 release-keys",
  "ro_build_expect_bootloader": " 01.01.180822.145544",
  "ro_build_fingerprint": " Xiaomi/oneday/oneday",
  "ro_build_flavor": " oneday-user",
  "ro_build_host": " c5-mitv-bsp-build04.bj",
  "ro_build_id": " PI",
  "ro_build_software_version": " 21.9.28.3933",
  "ro_build_system_root_image": " true",
  "ro_build_user": " jenkins",
  "ro_build_version_preview_sdk": " 0",
  "ro_build_version_release": " 9",
  "ro_build_version_sdk": " 28",
  "ro_com_google_clientidbase": " android-xiaomi-tv",
  "ro_com_google_gmsversion": " Android_9_Pie",
  "ro_config_notification_sound": " pixiedust.ogg",
  "ro_product_brand": " Xiaomi",
  "ro_product_build_date": " Tue Sep 28 18",
  "ro_product_build_date_utc": " 1632823795",
  "ro_product_build_fingerprint": " Xiaomi/oneday/oneday",
  "ro_product_cpu_abi": " armeabi-v7a",
  "ro_product_cpu_abi2": " armeabi",
  "ro_product_cpu_abilist": " armeabi-v7a,armeabi",
  "ro_product_cpu_abilist32": " armeabi-v7a,armeabi",
  "ro_product_cpu_abilist64": " ",
  "ro_product_device": " oneday",
  "ro_product_first_api_level": " 28",
  "ro_product_locale": " en-US",
  "ro_product_manufacturer": " Xiaomi",
  "ro_product_model": " MIBOX4",
  "ro_product_name": " oneday",
  "ro_product_vendor_brand": " Xiaomi",
  "ro_product_vendor_device": " oneday",
  "ro_product_vendor_manufacturer": " Xiaomi",
  "ro_product_vendor_model": " MIBOX4",
  "ro_product_vendor_name": " oneday"
}

Get device memory info: /api/{device}/memory. Returns the device memory info.

{
  "MemTotal": "2034840 kB",
  "MemFree": "169388 kB",
  "MemAvailable": "1076044 kB",
  "Buffers": "30816 kB",
  "Cached": "996968 kB",
  "SwapCached": "0 kB",
  "Active": "911756 kB",
  "Inactive": "622644 kB",
  "Active(anon)": "508824 kB",
  "Inactive(anon)": "2156 kB",
  "Active(file)": "402932 kB",
  "Inactive(file)": "620488 kB",
  "Unevictable": "2340 kB",
  "Mlocked": "2340 kB",
  "SwapTotal": "262140 kB",
  "SwapFree": "262140 kB",
  "Dirty": "0 kB",
  "Writeback": "0 kB",
  "AnonPages": "508964 kB",
  "Mapped": "532488 kB",
  "Shmem": "2508 kB",
  "Slab": "106952 kB",
  "SReclaimable": "49936 kB",
  "SUnreclaim": "57016 kB",
  "KernelStack": "21504 kB",
  "PageTables": "27004 kB",
  "NFS_Unstable": "0 kB",
  "Bounce": "0 kB",
  "WritebackTmp": "0 kB",
  "CommitLimit": "1279560 kB",
  "Committed_AS": "23159644 kB",
  "VmallocTotal": "263061440 kB",
  "VmallocUsed": "0 kB",
  "VmallocChunk": "0 kB",
  "CmaTotal": "544768 kB",
  "CmaFree": "0 kB",
  "VmapStack": "5496 kB"
}

Get device CPU info: /api/{device}/cpu. Returns a cores count plus the key/value pairs from /proc/cpuinfo. Note: cores is currently read from the first configured device, not from {device}.
Get the list of installed applications: /api/{device}/apps/3rd (third-party) or /api/{device}/apps/system (system). Returns a list of installed applications with basic info. The first lookup of each app queries Google Play, so it can be slow; later calls are served from the SQLite cache.

{
  "com.plexapp.android": {
    "appname": "Plex: Stream Movies & TV",
    "appurl": "https://play.google.com/store/apps/details?id=com.plexapp.android&hl=en&gl=il",
    "appimage": "https://play-lh.googleusercontent.com/slZYN_wnlAZ4BmyTZZakwfwAGm8JE5btL7u7AifhqCtUuxhtVVxQ1mcgpGOYC7MsAaU"
  },
  "il.co.yes.yesgo": {
    "appname": "yes+",
    "appurl": "https://play.google.com/store/apps/details?id=il.co.yes.yesgo&hl=en&gl=il",
    "appimage": "https://play-lh.googleusercontent.com/8AgNls4adb1Wsp4ZxGGoaSecwbiBT1wmY1cgRLEwjhltrlS2lNcanpXLT_5IidJpbA"
  },
  "il.co.stingtv.atv": {
    "appname": "STINGTV",
    "appurl": "https://play.google.com/store/apps/details?id=il.co.stingtv.atv&hl=en&gl=il",
    "appimage": "https://play-lh.googleusercontent.com/NrUvKI1NcsLk6_hNxZtxWENvDyuQNvTDvoJqZFmuuFrKcml-5bygxM_oJNyYyTFXBpo"
  },
  "miada.tv.webbrowser": {
    "appname": "Internet Web Browser",
    "appurl": "https://play.google.com/store/apps/details?id=miada.tv.webbrowser&hl=en&gl=il",
    "appimage": "https://play-lh.googleusercontent.com/wui_0K9RipIlFKLsSbAPFaI9-f6PA4INZ0GKZDThsi57Jm-Olw04T_pqtufhNaTKLw"
  },
  "com.spotify.tv.android": {
    "appname": "Spotify - Music and Podcasts",
    "appurl": "https://play.google.com/store/apps/details?id=com.spotify.tv.android&hl=en&gl=il",
    "appimage": "https://play-lh.googleusercontent.com/eN0IexSzxpUDMfFtm-OyM-nNs44Y74Q3k51bxAMhTvrTnuA4OGnTi_fodN4cl-XxDQc"
  },
  "com.greenshpits.RLive": {
    "appname": "Radio Live Israel radio online",
    "appurl": "https://play.google.com/store/apps/details?id=com.greenshpits.RLive&hl=en&gl=il",
    "appimage": "https://play-lh.googleusercontent.com/c5hWYKQ0BJioIyoPegJiibjz93PBYVGT0BUrRCoHvkx_bnqkBCQf91752R7BTKEzIro"
  },
  "com.android.chrome": {
    "appname": "Google Chrome: Fast & Secure",
    "appurl": "https://play.google.com/store/apps/details?id=com.android.chrome&hl=en&gl=il",
    "appimage": "https://play-lh.googleusercontent.com/KwUBNPbMTk9jDXYS2AeX3illtVRTkrKVh5xR1Mg4WHd0CG2tV4mrh1z3kXi5z_warlk"
  }
}

Execute command: /api/{device}/execute/{command}. Returns the command output as a list of lines. For example, getting the current system volume: the command settings get system volume_system (/api/192.168.0.12/execute/settings%20get%20system%20volume_system) will return the following output:

[
  "7"
]

A / can't be used directly inside the path parameter; encode it as / (URL-encoded: %26%2347%3B) and the API converts it back to /.

Send key events: /api/{device}/{keyevent}. This endpoint simulates one or more key presses by running input keyevent {keyevent} on the device. For example, /api/192.168.0.12/3 simulates clicking the "Home" button, and /api/192.168.0.12/25%2025 (input keyevent 25 25) simulates two clicks on the "Volume Down" button. Response:

{
  "success": true,
  "message": "keyevent command executed successfuly"
}

Open application: /api/{device}/{app}/open. This endpoint opens the requested application. For example, /api/192.168.0.12/com.plexapp.android/open will open the "Plex" application.
Close application: /api/{device}/{app}/close. Force-stops the application (am force-stop). For example, /api/192.168.0.12/com.plexapp.android/close.
Take a screenshot: /api/screenshot/get/{device}/{image}. Captures the screen, pulls it from the device, deletes the temporary file on the device, and returns {image}.png. The file is also kept in the container at /app/dist/screenshots/{image}.png and served at /dist/screenshots/{image}.png.

The code also defines /api/{device}/start?activity=<package/activity> (runs am start -n), but it is declared after /api/{device}/{keyevent}, which matches the same path first, so the request is handled as a key event.

Security Notes

No authentication. The API has no authentication or authorization, and /api/{device}/execute/{command} runs arbitrary shell commands on your devices. Keep ADB-API on a trusted local network and don't expose it to the internet; if you need remote access, put it behind a VPN or an authenticating reverse proxy.
ADB keys. At startup the application uses the key pair in config/adb and config/adb.pub, and generates a new pair there if either file is missing. Each installation therefore gets its own key, and the TV must authorize it (the "Allow USB debugging" prompt).
Bundled key pair. The repository also contains an RSA key pair in app/keys/ (and it is copied into the image). The application code does not use it. Because that private key is public, never copy it into your config directory or authorize it on your devices; let ADB-API generate its own key. To rotate your key, delete config/adb and config/adb.pub, restart the container, and accept the new prompt on each device.
Privileged container. The sample Compose file runs the container with privileged: true.
Protect the config volume. It contains the ADB private key, which grants shell access to every device that has authorized it.

Troubleshooting

The container exits right after start. The app accesses the first connected device when it starts, so it fails if no device in devices.yaml could be connected. Make sure at least one device is powered on, reachable, and has authorized the key, then restart.
Startup error with the default devices.yaml. Every entry needs a name, ip, and port. Remove unused entries instead of leaving them empty.
A device returns an error (HTTP 500, or "success": false for key events). Devices that couldn't be connected at startup aren't registered. Accept the "Allow USB debugging" prompt on the TV and restart the container. Also make sure you use the device's IP exactly as written in devices.yaml.
The "Allow USB debugging" prompt keeps coming back. Check "Always allow from this computer" and keep the config volume persistent so the key isn't regenerated.
App names or icons are empty. The Google Play lookup failed (for example, no internet access or the app isn't on Google Play). Results, including empty ones, are cached in appinfo.db; delete that file to force a new lookup.

Development

The Docker image is built on techblog/fastapi, which provides FastAPI, Uvicorn, Jinja2, loguru, and requests; requirements.txt only lists the extra packages.

Run from source:

git clone https://github.com/t0mer/adb-api.git
cd adb-api
pip install -r requirements.txt fastapi uvicorn jinja2 loguru requests
cd app
mkdir -p config
# create config/devices.yaml (see above), then:
sudo python3 app.py   # listens on 0.0.0.0:80

The app must be started from the app/ directory, because it uses relative paths (config/, dist/, templates/).

Project layout:

app/
  app.py              # FastAPI app, routes, ADB connections
  androiddevice.py    # device model
  sqliteconnector.py  # SQLite cache for app details
  devices.yaml        # default devices template
  templates/mibox.html
  dist/mibox/         # remote images
Dockerfile
VERSION               # image version tag
.github/workflows/    # Docker Hub and JFrog build workflows (manual dispatch)

The Docker Hub image is built by the manually triggered Docker Build workflow for linux/amd64, linux/arm64, and linux/arm/v7, and tagged latest and the version in VERSION.

Useful List of ADB Commands

I have published a list of useful ADB commands here.

Contributing

Issues and pull requests are welcome at github.com/t0mer/adb-api.

License

This project is licensed under the MIT License.

Navigation Menu

Repository files navigation

ADB-API

Table of Contents

Features

How It Works

Components and Libraries Used in ADB-API

Requirements

Installation and Configuration

1. Enable developer mode on the streamer

2. Run the container

Configuration Reference

`devices.yaml`

Files and ports

Working with ADB-API

Swagger / OpenAPI

Virtual remote

Examples with curl

API Endpoints

Security Notes

Troubleshooting

Development

Useful List of ADB Commands

Contributing

License

About

Releases

Packages

Used by

Contributors

Languages

Name		Name	Last commit message	Last commit date
.github/workflows		.github/workflows
app		app
Dockerfile		Dockerfile
LICENSE		LICENSE
README.md		README.md
VERSION		VERSION
requirements.txt		requirements.txt

Latest commit

History

Folders and files

Repository files navigation

ADB-API

Table of Contents

Features

How It Works

Components and Libraries Used in ADB-API

Requirements

Installation and Configuration

1. Enable developer mode on the streamer

2. Run the container

Configuration Reference

devices.yaml

Files and ports

Working with ADB-API

Swagger / OpenAPI

Virtual remote

Examples with curl

API Endpoints

Security Notes

Troubleshooting

Development

Useful List of ADB Commands

Contributing

License

About

Topics

Resources

Stars

Watchers

Forks

Releases

Packages

Used by

Contributors

Languages

`devices.yaml`
